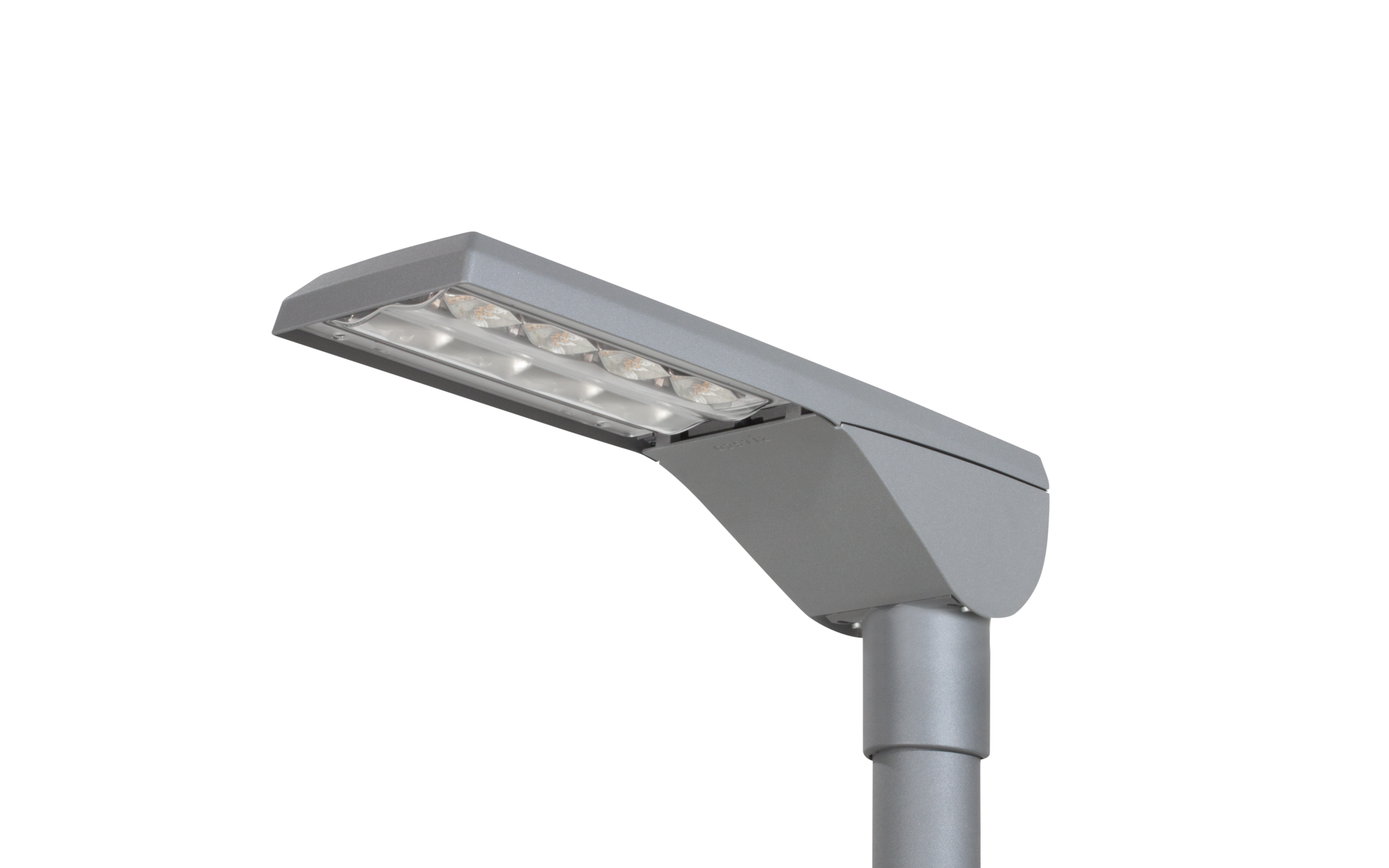

spare parts Streetlight 10

ProducttypesConfiguration & Datasheets

Switch to the latest LED technology while leaving 80% of the existing luminaire on the mast - possible with the upgrade kit for Streetlight 10 luminaires. Significantly lower operating costs, a quick and uncomplicated conversion in accordance with legal requirements and the needs of flora and fauna even better in view - an upgrade is worthwhile for many reasons.

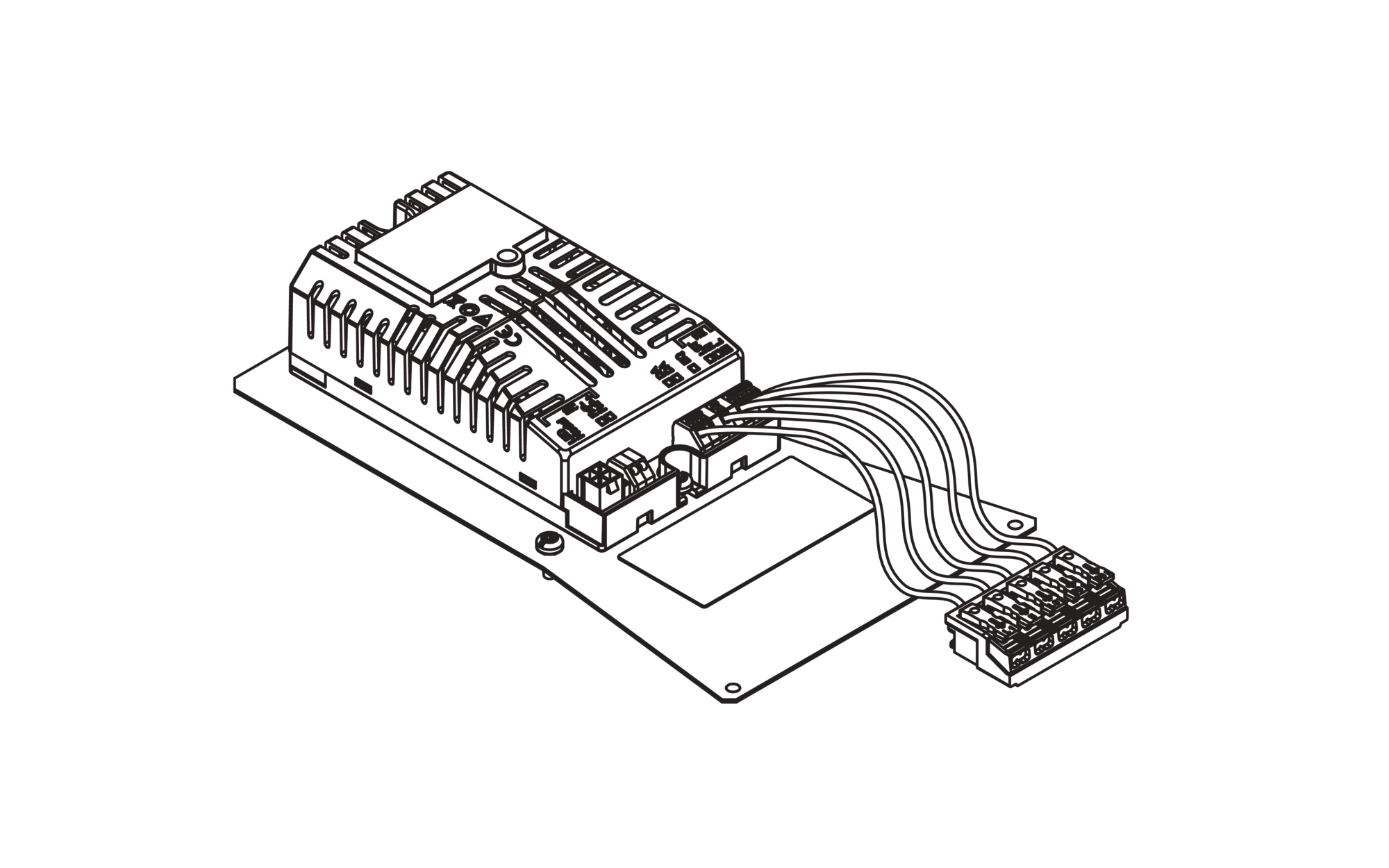

No matter whether it's an ECG replacement, an LED module replacement or both, the replacement works quickly and effortlessly: the LED replacement is possible without ESD protection, an ECG replacement is done in no time at all thanks to automatic data transfer.

Upgrade now and benefit from lower operating costs and well thought-out functions!

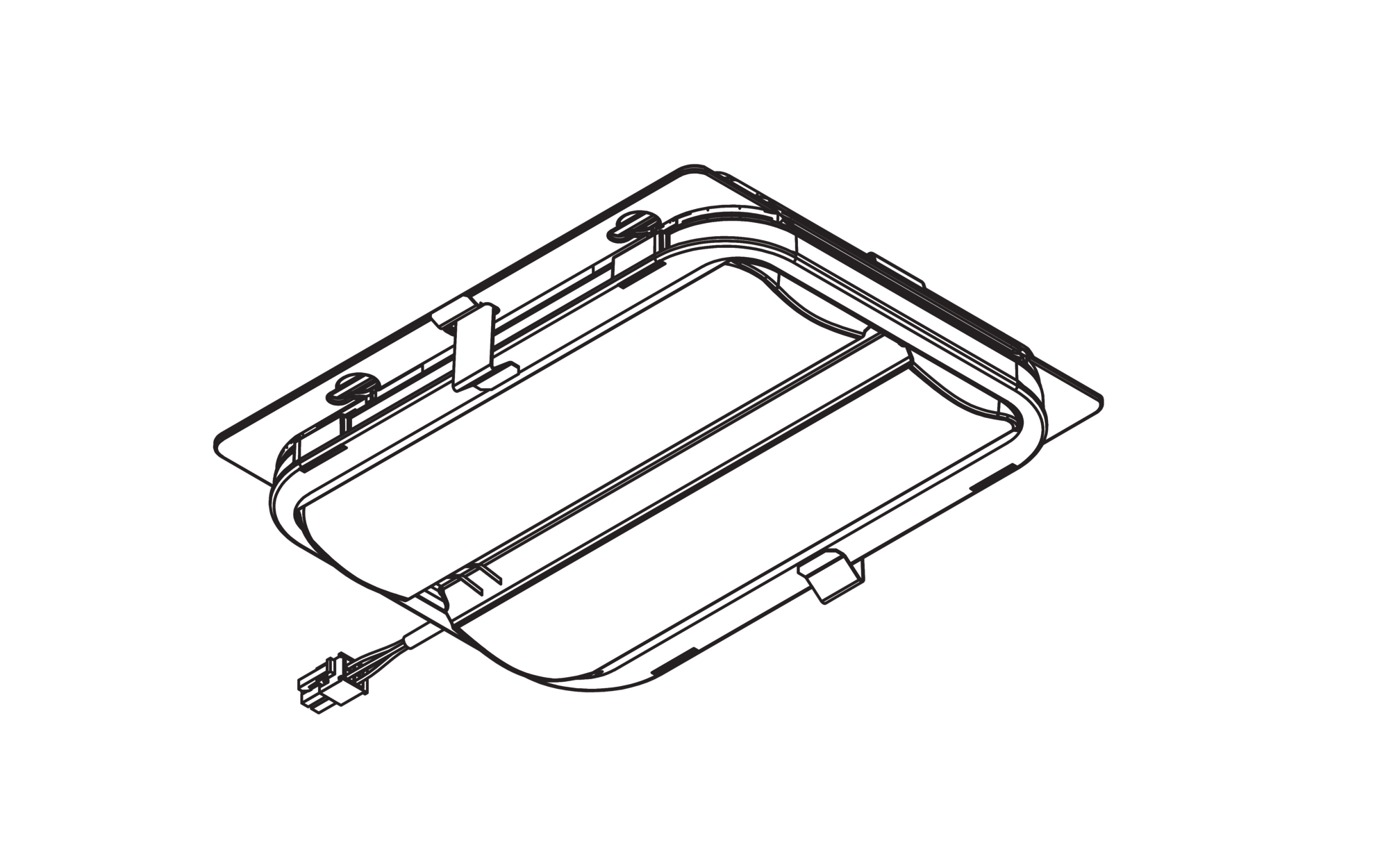

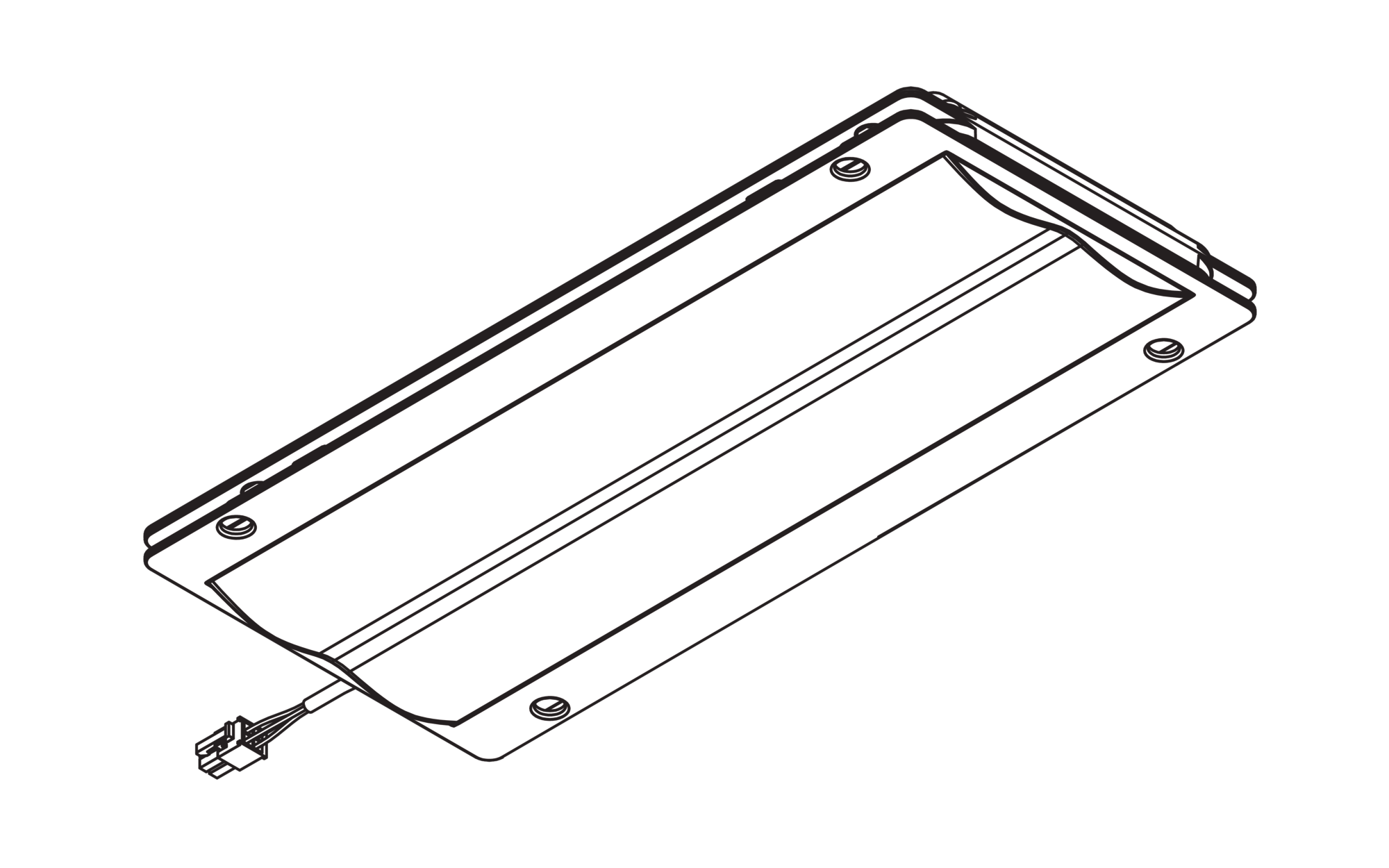

Streetlight 10 micro LED module

Intro to Productfamily

Data

Varetekst LED-modul
Lyseffekt asymmetrisk bredstrålende; asymmetrisk ekstremt bredstrålende
Lysfordeling ST1.2a; P1.0a
Fargetemperatur 2700K; 2200K; 1800K; 3000K; 4000K; 5000K

Specials

Sustainable concept: the Streetlight 10 family consists of a high-quality aluminum housing and, thanks to its modular design, is prepared for quick and easy replacement of the components
Turn old into new: with the upgrade kit, around 80% of the luminaire remains on the mast and can be reused. Replacing the LED module and/or ECG is all it takes to bring your Streetlight 10 back to the state of the art
Upgrade yes, but how? Very uncomplicated! ECG exchange? LED module exchange? Both? No matter what you choose, the exchange is quick and easy. The LED module can be replaced without ESD protection, and you can also replace the ECG in no time at all, because all data is transferred automatically thanks to SITECO Auto-Match
Auto-Match: Replacing or refurbishing components for upgrades with automatic data transfer: With SITECO Auto-Match it's really easy, because ECG and LED board communicate with each other: As soon as a new element is added to the luminaire, it automatically receives all the necessary settings and information from the system. You don't have to do anything else! Save yourself the time and effort - and simply benefit from lower operating costs and well thought-out functions

Configuration & Datasheets

Lysfordeling

Fargetemperatur

For luminaire variants with order numbers 5XA58.7CN… or 5XA58.8CN… please contact your sales representative

Results

Streetlight 10 micro, LED-modul, asymmetrisk bredstrålende, ST1.2a

Bestillingsnummer: 5XMOD0114K GTIN (EAN): 4050737848457
FargetemperaturFargegjengivelseLysfordelingVekt (kg)
4000KCRI > 70ST1.2a0,7

Streetlight 10 micro, LED-modul, asymmetrisk ekstremt bredstrålende, P1.0a

Bestillingsnummer: 5XMOD0114L GTIN (EAN): 4050737957180
FargetemperaturFargegjengivelseLysfordelingVekt (kg)
4000KCRI > 70P1.0a0,6

Streetlight 10 micro, LED-modul, asymmetrisk bredstrålende, ST1.2a

Bestillingsnummer: 5XMOD0114A GTIN (EAN): 4050737848419
FargetemperaturFargegjengivelseLysfordelingVekt (kg)
5000KCRI > 70ST1.2a0,7

Streetlight 10 micro, LED-modul, asymmetrisk bredstrålende, ST1.2a

Bestillingsnummer: 5XMOD0155K GTIN (EAN): 4058352780510
FargetemperaturFargegjengivelseLysfordelingVekt (kg)
3000KCRI > 70ST1.2a0,8

Streetlight 10 micro, LED-modul, asymmetrisk ekstremt bredstrålende, P1.0a

Bestillingsnummer: 5XMOD0114F GTIN (EAN): 4050737957166
FargetemperaturFargegjengivelseLysfordelingVekt (kg)
3000KCRI > 80P1.0a0,6

Streetlight 10 micro, LED-modul, asymmetrisk bredstrålende, ST1.2a

Bestillingsnummer: 5XMOD0165K GTIN (EAN): 4058352780558
FargetemperaturFargegjengivelseLysfordelingVekt (kg)
2700KCRI > 70ST1.2a0,8

Streetlight 10 micro, LED-modul, asymmetrisk ekstremt bredstrålende, P1.0a

Bestillingsnummer: 5XMOD0165L GTIN (EAN): 4058352780572
FargetemperaturFargegjengivelseLysfordelingVekt (kg)
2700KCRI > 70P1.0a0,8

Streetlight 10 micro, LED-modul, asymmetrisk bredstrålende, ST1.2a

Bestillingsnummer: 5XMOD0125K GTIN (EAN): 4058352780473
FargetemperaturFargegjengivelseLysfordelingVekt (kg)
2200KCRI > 70ST1.2a0,8

Streetlight 10 micro, LED-modul, asymmetrisk ekstremt bredstrålende, P1.0a

Bestillingsnummer: 5XMOD0125L GTIN (EAN): 4058352780497
FargetemperaturFargegjengivelseLysfordelingVekt (kg)
2200KCRI > 70P1.0a0,8

Streetlight 10 micro, LED-modul, asymmetrisk bredstrålende, ST1.2a

Bestillingsnummer: 5XMOD0175K GTIN (EAN): 4058352780596
FargetemperaturFargegjengivelseLysfordelingVekt (kg)
1800KCRI > 70ST1.2a0,8

Streetlight 10 micro, LED-modul, asymmetrisk ekstremt bredstrålende, P1.0a

Bestillingsnummer: 5XMOD0175L GTIN (EAN): 4058352780619
FargetemperaturFargegjengivelseLysfordelingVekt (kg)
1800KCRI > 70P1.0a0,8

Streetlight 10 micro, LED-modul, asymmetrisk bredstrålende, ST1.2a

Bestillingsnummer: 5XMOD0114KGTIN (EAN): 4050737848457

Fargetemperatur4000K
FargegjengivelseCRI > 70
LysfordelingST1.2a
Vekt (kg)0,7

Streetlight 10 micro, LED-modul, asymmetrisk ekstremt bredstrålende, P1.0a

Bestillingsnummer: 5XMOD0114LGTIN (EAN): 4050737957180

Fargetemperatur4000K
FargegjengivelseCRI > 70
LysfordelingP1.0a
Vekt (kg)0,6

Streetlight 10 micro, LED-modul, asymmetrisk bredstrålende, ST1.2a

Bestillingsnummer: 5XMOD0114AGTIN (EAN): 4050737848419

Fargetemperatur5000K
FargegjengivelseCRI > 70
LysfordelingST1.2a
Vekt (kg)0,7

Streetlight 10 micro, LED-modul, asymmetrisk bredstrålende, ST1.2a

Bestillingsnummer: 5XMOD0155KGTIN (EAN): 4058352780510

Fargetemperatur3000K
FargegjengivelseCRI > 70
LysfordelingST1.2a
Vekt (kg)0,8

Streetlight 10 micro, LED-modul, asymmetrisk ekstremt bredstrålende, P1.0a

Bestillingsnummer: 5XMOD0114FGTIN (EAN): 4050737957166

Fargetemperatur3000K
FargegjengivelseCRI > 80
LysfordelingP1.0a
Vekt (kg)0,6

Streetlight 10 micro, LED-modul, asymmetrisk bredstrålende, ST1.2a

Bestillingsnummer: 5XMOD0165KGTIN (EAN): 4058352780558

Fargetemperatur2700K
FargegjengivelseCRI > 70
LysfordelingST1.2a
Vekt (kg)0,8

Streetlight 10 micro, LED-modul, asymmetrisk ekstremt bredstrålende, P1.0a

Bestillingsnummer: 5XMOD0165LGTIN (EAN): 4058352780572

Fargetemperatur2700K
FargegjengivelseCRI > 70
LysfordelingP1.0a
Vekt (kg)0,8

Streetlight 10 micro, LED-modul, asymmetrisk bredstrålende, ST1.2a

Bestillingsnummer: 5XMOD0125KGTIN (EAN): 4058352780473

Fargetemperatur2200K
FargegjengivelseCRI > 70
LysfordelingST1.2a
Vekt (kg)0,8

Streetlight 10 micro, LED-modul, asymmetrisk ekstremt bredstrålende, P1.0a

Bestillingsnummer: 5XMOD0125LGTIN (EAN): 4058352780497

Fargetemperatur2200K
FargegjengivelseCRI > 70
LysfordelingP1.0a
Vekt (kg)0,8

Streetlight 10 micro, LED-modul, asymmetrisk bredstrålende, ST1.2a

Bestillingsnummer: 5XMOD0175KGTIN (EAN): 4058352780596

Fargetemperatur1800K
FargegjengivelseCRI > 70
LysfordelingST1.2a
Vekt (kg)0,8

Streetlight 10 micro, LED-modul, asymmetrisk ekstremt bredstrålende, P1.0a

Bestillingsnummer: 5XMOD0175LGTIN (EAN): 4058352780619

Fargetemperatur1800K
FargegjengivelseCRI > 70
LysfordelingP1.0a
Vekt (kg)0,8
