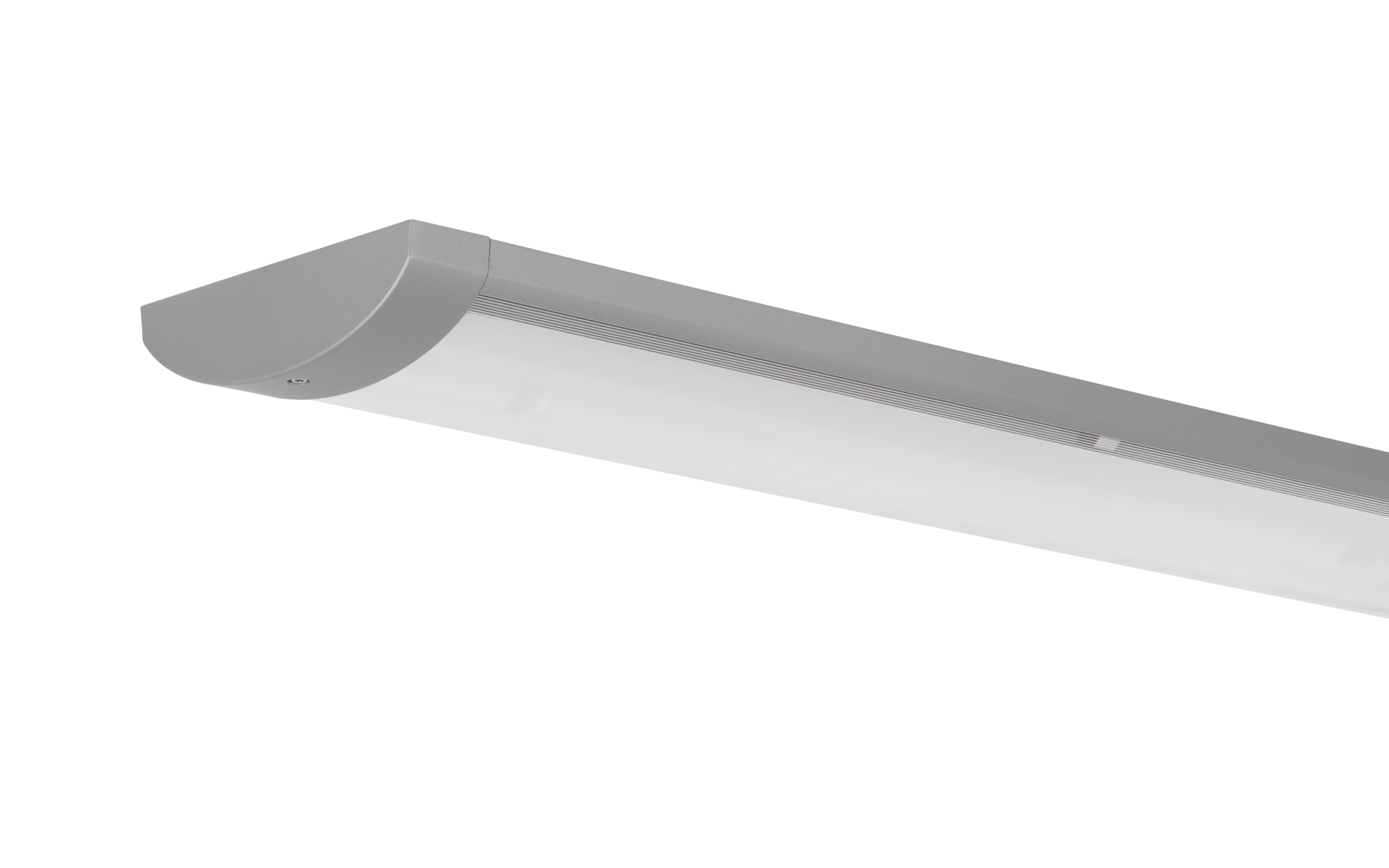

![](/asset/uk_en/%2A/PNG/1006398/5XA861D4N0J.png)
TV 20
Absolute robustness and daylight illumination in connection with well thought-out features - the ideal tunnel and underpass lighting. Thanks to its high impact resistance and polycarbonate cover, the luminaire is the perfect solution for harsh environments with high corrosion protection requirements and areas prone to vandalism. Installation is quick and flexible thanks to click-in stainless steel fasteners.
Luminaires for underpasses

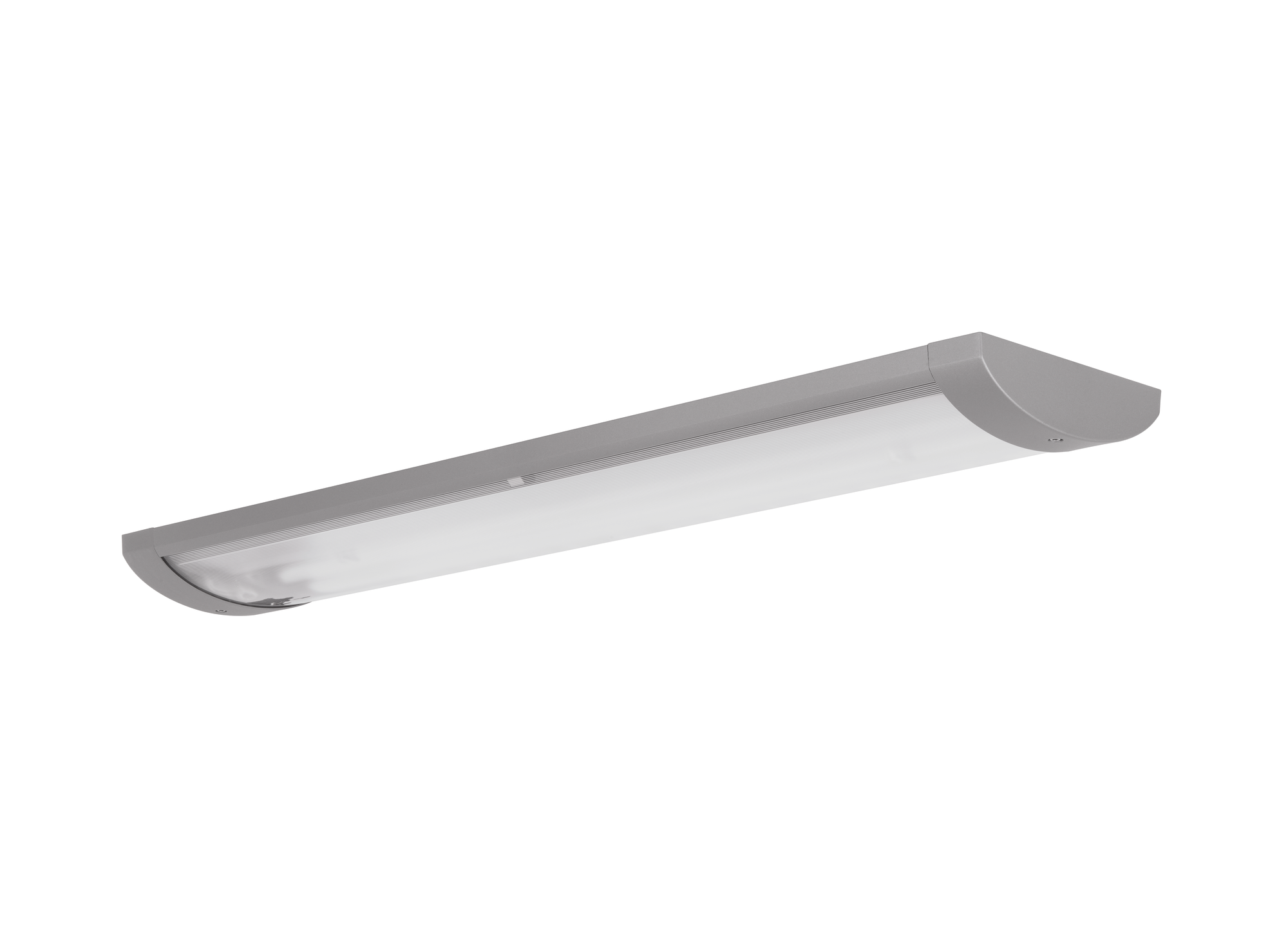

![](/asset/uk_en/en/PNG/1007445/impression-67-1.png)
Producttypes

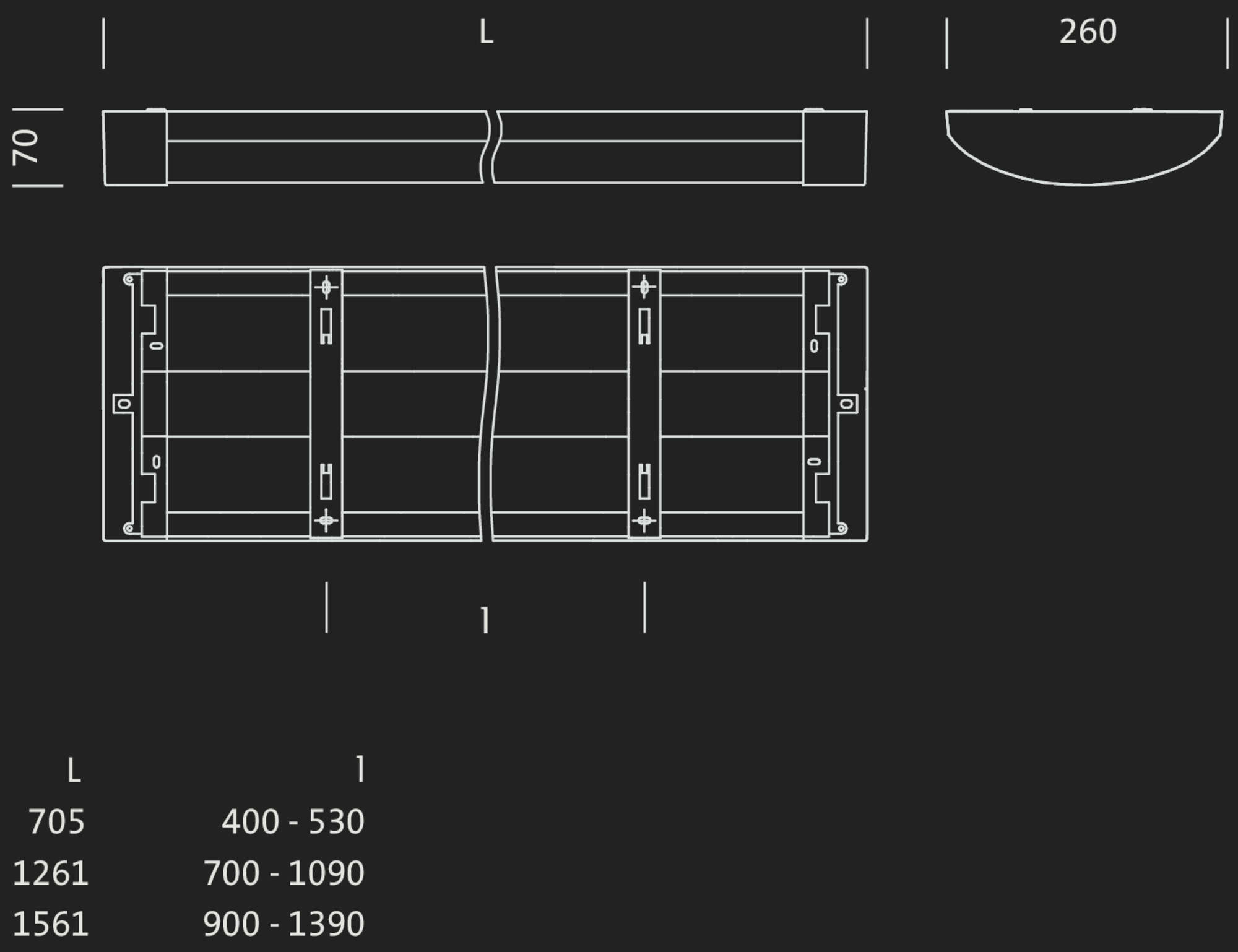

![](/asset/uk_en/en/PNG2000AN/1001536/dd-238.png)
Data
Article vandal-proof luminaire
Lighting effect direct symmetric distribution
Net luminous flux 2130lm to 5120lm
Colour temperature 4000K
Control ON/OFF; DALI
Specials
Configuration & Datasheets
- luminaire incl. mounting brackets
Results
TV 20, Light colour 840, ON/OFF, 2x IK10
Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 2130lm | 21W | 101lm/W | ON/OFF | 705 | 4.8 |
TV 20, Light colour 840, ON/OFF, 2x IK10
Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 3960lm | 37W | 107lm/W | ON/OFF | 1261 | 7.9 |
TV 20, Light colour 840, ON/OFF, 2x IK10
Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 5120lm | 50W | 102lm/W | ON/OFF | 1561 | 9.4 |
TV 20, Light colour 840, DALI, 2x IK10
Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 2130lm | 21W | 101lm/W | DALI | 705 | 4.1 |
TV 20, Light colour 840, DALI, 2x IK10
Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 3960lm | 37W | 107lm/W | DALI | 1261 | 6.9 |
TV 20, Light colour 840, DALI, 2x IK10
Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 5120lm | 50W | 102lm/W | DALI | 1561 | 8.9 |
TV 20, Light colour 840, ON/OFF, 2x IK10
Order No.: 5XA86172N0AGTIN (EAN): 4050737978284
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Luminous flux | 2130lm |
Connected load | 21W |
Luminous efficacy | 101lm/W |
Control | ON/OFF |
L (mm) | 705 |
Wt. (kg) | 4.8 |
TV 20, Light colour 840, ON/OFF, 2x IK10
Order No.: 5XA86174N0JGTIN (EAN): 4069025029034
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Luminous flux | 3960lm |
Connected load | 37W |
Luminous efficacy | 107lm/W |
Control | ON/OFF |
L (mm) | 1261 |
Wt. (kg) | 7.9 |
TV 20, Light colour 840, ON/OFF, 2x IK10
Order No.: 5XA86174N0XGTIN (EAN): 4069025029058
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Luminous flux | 5120lm |
Connected load | 50W |
Luminous efficacy | 102lm/W |
Control | ON/OFF |
L (mm) | 1561 |
Wt. (kg) | 9.4 |
TV 20, Light colour 840, DALI, 2x IK10
Order No.: 5XA861D2N0AGTIN (EAN): 4050737978314
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Luminous flux | 2130lm |
Connected load | 21W |
Luminous efficacy | 101lm/W |
Control | DALI |
L (mm) | 705 |
Wt. (kg) | 4.1 |
TV 20, Light colour 840, DALI, 2x IK10
Order No.: 5XA861D4N0JGTIN (EAN): 4050737978321
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Luminous flux | 3960lm |
Connected load | 37W |
Luminous efficacy | 107lm/W |
Control | DALI |
L (mm) | 1261 |
Wt. (kg) | 6.9 |
TV 20, Light colour 840, DALI, 2x IK10
Order No.: 5XA861D4N0XGTIN (EAN): 4069025029072
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Luminous flux | 5120lm |
Connected load | 50W |
Luminous efficacy | 102lm/W |
Control | DALI |
L (mm) | 1561 |
Wt. (kg) | 8.9 |
Optional accessory
Order No.: 5NY86EGTIN (EAN): 4058352204184 | Show details |
