SITECO Connect 21
SITECO Connect 21 is the comprehensive indoor control solution for all control requirements. It offers high functionality and is still easy to use. SITECO Connect 21 combines the topics of sustainability, productivity, flexibility and well-being and is aimed at the areas of application in industry, retail and offices.

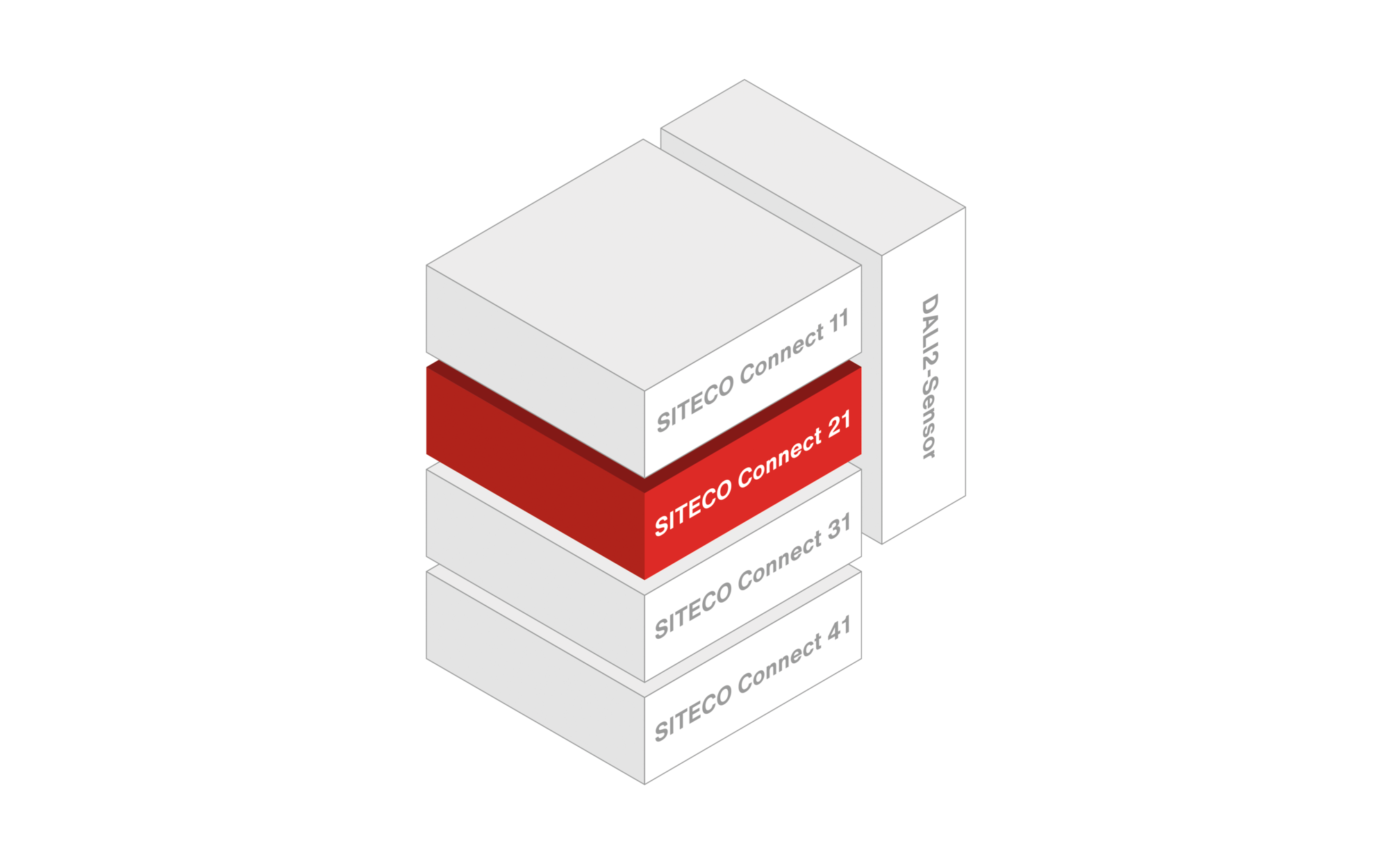

SITECO Connect solution kit
![](/asset/ch_it/it/PNG/1007404/impression-657-1.png)
SITECO Connect 21 B
Intro to ProductfamilyData
Articolo dispositivo di controllo dell'illuminazione
Controllo DALI 2
Specials
Controller available as DIN rail PC
Future-proof: through open and standardized DALI2 interface
Easy commissioning: all function via commissioning software
Access: different user rights and roles provide functional security
Manual intervention: possible at any time by users
Future-proofing and flexibility: through individual addressing and grouping of luminaires and sensors
Cost efficiency: accelerating payback through sensors (daylight and motion)
Proactive: automatic control of lighting through intelligent time schedules
SITECO HCLlive: light influences our body visually, emotionally and biologically. It sets the pace for our internal clock
Everything in view: web visualization of the entire solution (license already included)
Status of the lighting system: visualization of sensor and luminaire faults
Energy consumption: visualization of the energy consumption of the lighting system possible
Intelligence: intelligent control of luminaires depending on partition walls (e.g. sports halls, meeting rooms, etc.)
Remote maintenance: commissioning or analysis of the lighting system can also be carried out remotely if required
Configuration & Datasheets
- with SITECO Connect 21B, the complete control intelligence is combined in one device
- incl. controller, bus power supply, circuit breaker and software license
- incl. 2 DALI lines
- per DALI line max. 250mA power supply
- per DALI line max. 64 ECG and 64 sensor addresses
- DALI2 certified according to part 101, 103, 303 and 304
- can be expanded to max. 4 DALI lines using modular DALI2 terminals
Results

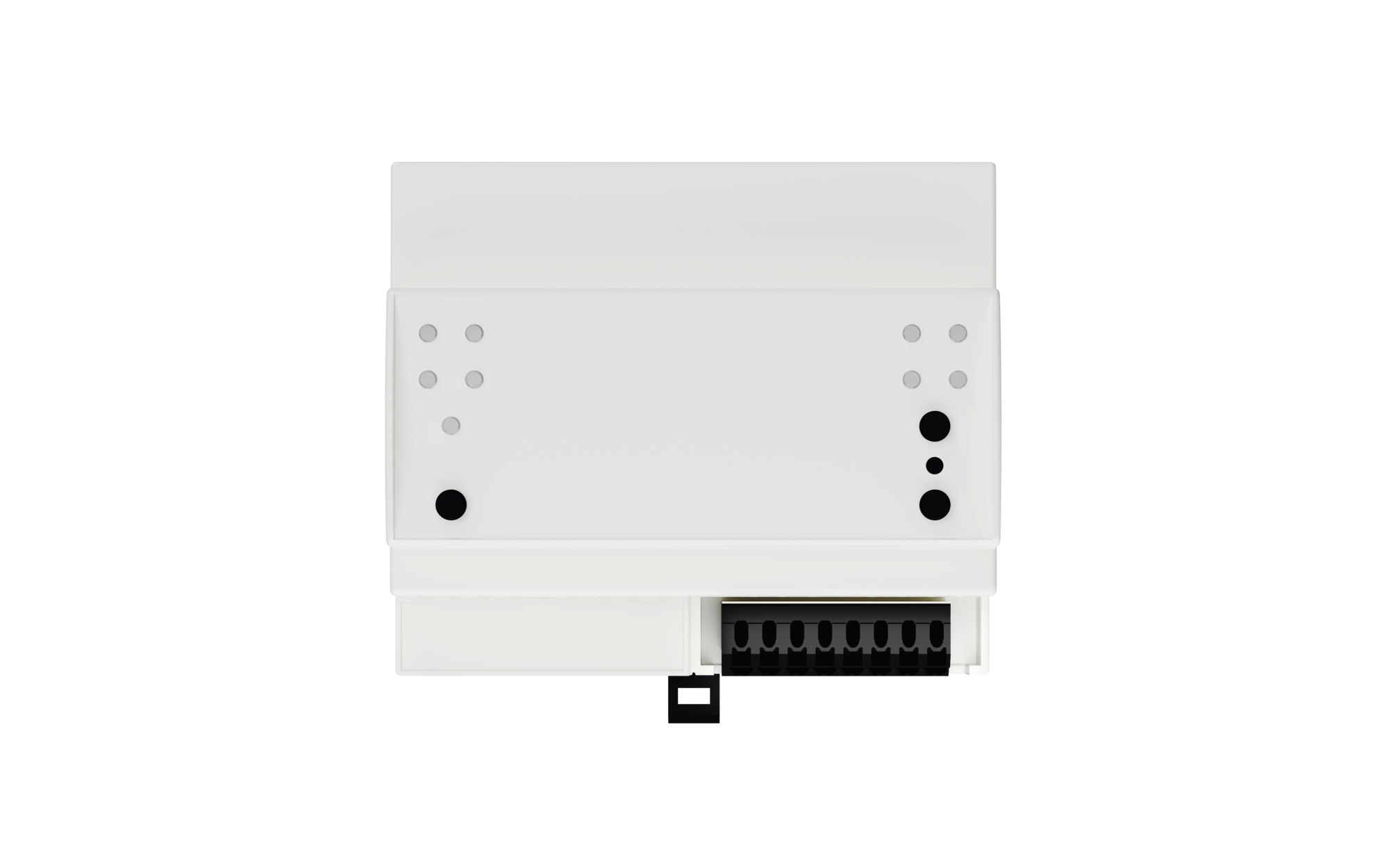

controller
Cod. articolo: 5LZ960100 GTIN (EAN): 4058352651612
Famiglia | Articolo | Equipaggiamento | Controllo | Luogo di montaggio | Peso (kg) | Prezzo (CHF) |
---|---|---|---|---|---|---|
SITECO Connect 21B | controller | master | DALI 2 | in una distribuzione elettrica | 0,2 | 4387,00 |
controller
Cod. articolo: 5LZ960100GTIN (EAN): 4058352651612
Famiglia | SITECO Connect 21B |
---|---|
Articolo | controller |
Equipaggiamento | master |
Controllo | DALI 2 |
Luogo di montaggio | in una distribuzione elettrica |
Peso (kg) | 0,2 |
Prezzo (CHF) | 4387,00 |
Optional accessory
Cod. articolo: 5LZ971005GTIN (EAN): 4058352797723 | Show details |
Cod. articolo: 56TL1FCSAGTIN (EAN): 4058352373880 | Show details |
Cod. articolo: 5TR305FCSAGTIN (EAN): 4058352635711 | Show details |
Cod. articolo: 59HL94002GTIN (EAN): 4058352379349 | Show details |
Cod. articolo: 59US1FCSAGTIN (EAN): 4058352361948 | Show details |
Cod. articolo: 56TL1MDSPC3AGTIN (EAN): 4058352407615 | Show details |
Cod. articolo: 56TL3MDSPC3AGTIN (EAN): 4058352407639 | Show details |
Cod. articolo: 56TL6MDSPC3AGTIN (EAN): 4058352407653 | Show details |
Cod. articolo: 56TL1MDSPS2AGTIN (EAN): 4058352400685 | Show details |
Cod. articolo: 56TN1SDSPE1BGTIN (EAN): 4058352596326 | Show details |
Cod. articolo: 59HL94003GTIN (EAN): 4058352641941 | Show details |
Cod. articolo: 5LZ925601GTIN (EAN): 4058352362020 | Show details |
Cod. articolo: 5LZ911731AGTIN (EAN): 4058352692899 | Show details |
