Licross® 11/21 sensors with DALI2 interface

ProducttypesConfiguration & Datasheets

You want a sustainable solution? Then sensors with a DALI 2 interface are the perfect solution thanks to open standards. Always remain flexible: The modular system from Licross® allows any configuration of the sensors according to your individual requirements. Changes in use are also easy for the Licross® sensors, so today's high-bay warehouse can already be a free logistics space tomorrow. Regardless of the application, you will always receive the optimal, economical solution thanks to specialized sensors. At the same time, Licross® sensors are true energy saving miracles: With daylight-dependent control you save up to 20%, with movement-dependent control even up to 80% in energy costs.

Open interfaces enable modularity, flexibility and future safety

Producttypes

for narrow rooms, e.g. corridors

for rack and high-bay warehouses (4…14m)

for rack and high-bay warehouses (5...16m)

for shelving system with grid shelf

for shipping areas (2…4m)

for shipping areas (5…14m)

for office, classroom and training room

for office/classroom

light sensor for daylight detection for row rooms, tiltable

for rack and high-bay warehouses (4…14m)

Intro to Productfamily

Data

Equipment slave
Article Sensor-Head PR2-S; Interface S

Specials

Multi-sensor for use in shipping areas
Multi-sensor with very high detection quality guarantees reliable detection of large areas with few sensors. With one sensor, up to 800m² can be detected depending on presence
Sensor specially developed for the application. Circular detection area
Basic energy-saving functions such as motion detection, daylight threshold value and fully automatic operation reduce energy costs and CO2 consumption
Inventory light deactivates the sensor function during the inventory period and controls the lights to 100% illuminance
Sensor planning in Relux saves time and gives you the security of planning sensor detection correctly

Configuration & Datasheets

  • when contacting DALI line 1, suitable from 7-core wiring upwards
  • with 14-core wiring, tapping between DALI line 1 and DALI line 2 can be slided tool-free
  • adaption to on-site conditions via 90° rotatable sensor interface
  • a sensor unit consists of sensor head and interface
  • DALI2 certified according to part 101,103,303,304
  • DALI current I= 6mA

Results

Licross® Interface, slave

Order No.: 56TL1FCSA GTIN (EAN): 4058352373880
ArticleApplication areaMounting heightDetection range movementDimension (mm)ta
Interface S 500x96-20..+50°C
Show details
Tender textData sheet (PDF, full)All Downloads

SITECO Connect, slave

Order No.: 59US1HXSPR2A GTIN (EAN): 4058352361979
ArticleApplication areaMounting heightDetection range movementDimension (mm)ta
Sensor-Head PR2-Sfor rack and highbay storage4..14mtangential max. 40x4m95x95-20..+50°C
Show details
Tender textData sheet (PDF, full)All Downloads

Licross® Interface, slave

Order No.: 56TL1FCSAGTIN (EAN): 4058352373880

ArticleInterface S
Application area
Mounting height
Detection range movement

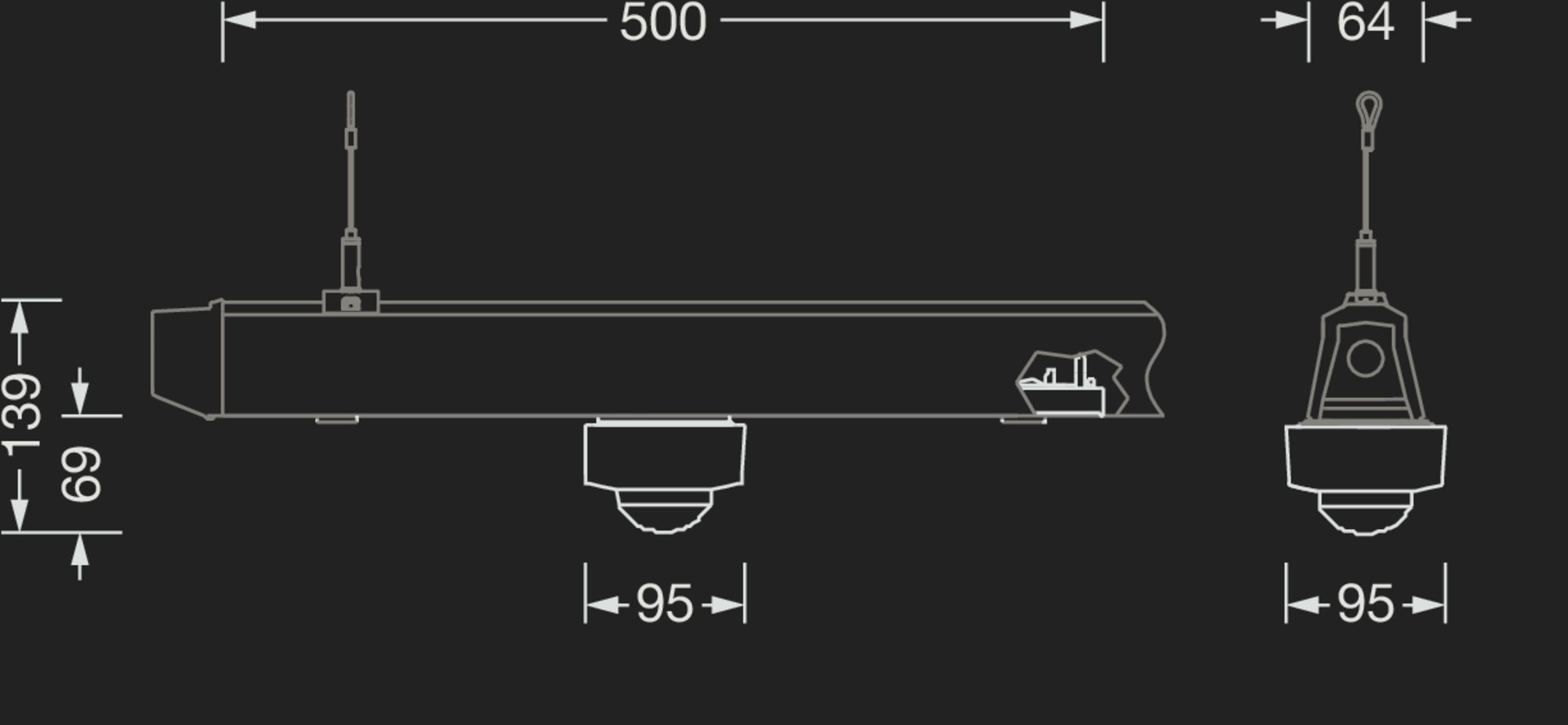

Dimension (mm)500x96
ta-20..+50°C
Show details

SITECO Connect, slave

Order No.: 59US1HXSPR2AGTIN (EAN): 4058352361979

ArticleSensor-Head PR2-S
Application areafor rack and highbay storage
Mounting height4..14m
Detection range movementtangential max. 40x4m
Dimension (mm)95x95
ta-20..+50°C
Show details

Mandatory accessory

Articlecontroller, master, DALI 2, central controlPU1 pc.Wt. (kg)0.2Order No.: 5LZ904712AGTIN (EAN): 4058352548448Show details
Articlebase package S/D, 1..15 DALI lines, DIN rail PC, DALI 2, central controlPU1 pc.Wt. (kg)0.6Order No.: 5LZ930100GTIN (EAN): 4058352385906Show details
Articlebase package S/P, touch panel PC, 1..15 DALI lines, DALI 2, central controlPU1 pc.Wt. (kg)0.9Order No.: 5LZ930101GTIN (EAN): 4058352385913Show details
Articlebase package M/D, DIN rail PC, 1..40 DALI lines, DALI 2, central controlPU1 pc.Wt. (kg)0.6Order No.: 5LZ930102GTIN (EAN): 4058352385920Show details
Articlebase package M/P, 1..40 DALI lines, touch panel PC, DALI 2, central controlPU1 pc.Wt. (kg)0.9Order No.: 5LZ930103GTIN (EAN): 4058352385937Show details
