Licross® 21
45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With its unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications - today and tomorrow. The luminaire inserts offer outstanding lighting technology for low operating costs as well as SITECO-typical optics technology for the best viewing conditions. Various extensions from sensor to cameras and data transmission open up a broad horizon of applications far from lighting, which create additional added value.
Our core portfolio: Licross® 21 is our trunking system with the highest standards of efficiency (up to 190lm/W), service life (up to 75,000h) and flexibility for your project
Producttypes
trunking rail
Recessed luminaire insert IP40/IP54
Opal luminaire insert IP40/IP54
Protected luminaire insert IP54/IP64
Performance luminaire insert IP40/IP54
Silica® luminaire insert IP40
functional insert
emergency lighting luminaire insert IP40
Highbay 21 for rail IP64
Monsun® 31 for Licross®
Spot 31 for Licross®

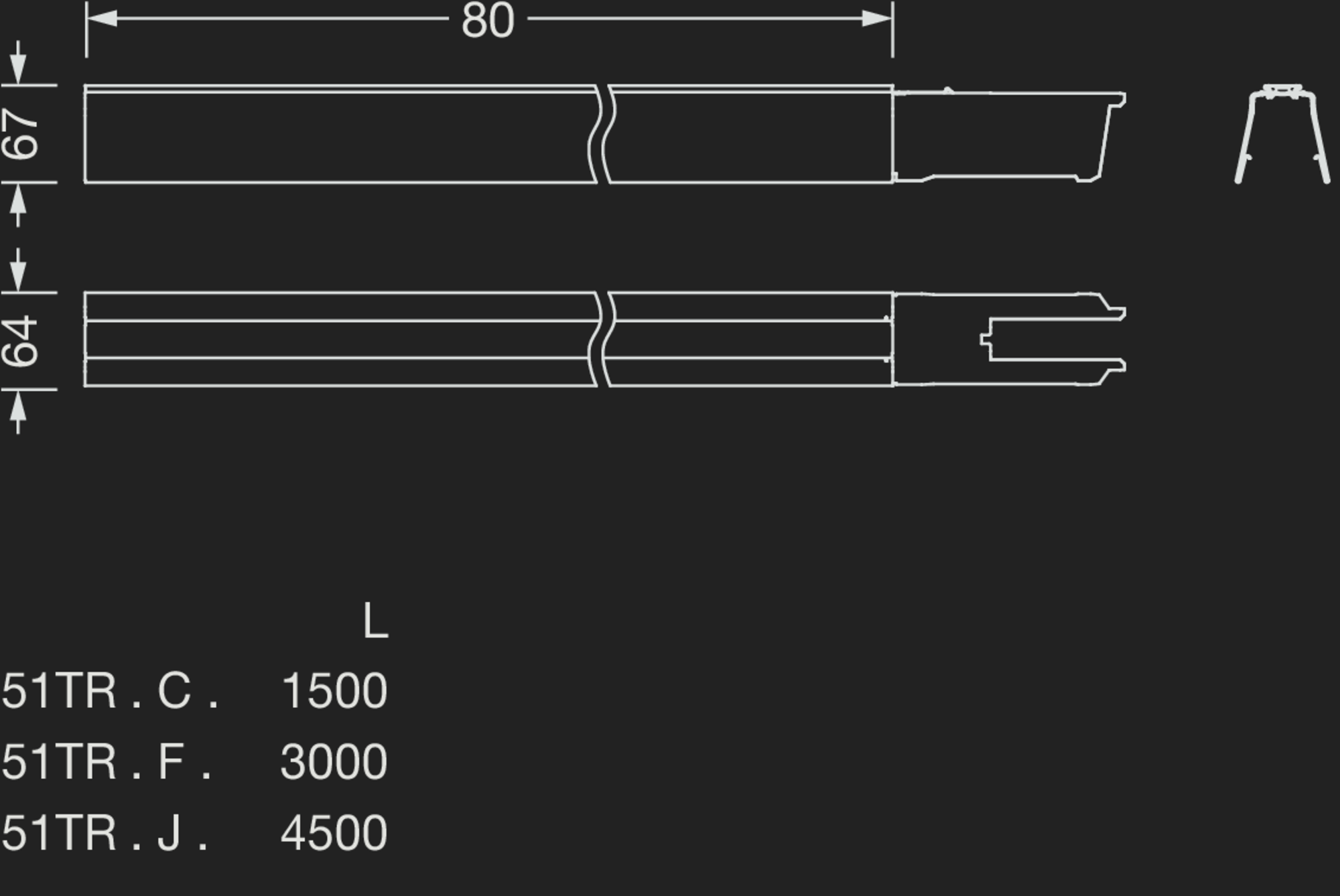

trunking rail
Intro to ProductfamilyData
Designation blank cover
Colour metallic grey (RAL 9006); white; matt jet black (RAL 9005)
Through-wiring 5x 2.5mm²; 7x 2.5mm²; 9x 2.5mm²; 11x 2.5mm²; 14x 2.5mm²
L (mm) 1500; 2250; 3000; 4500
Specials
Configuration & Datasheets
- trunking rail with halogen-free through-wiring 5x, 7x, 9x, 11x or 14x 2.5mm² (approvals DIN EN 61984 type CoC, VDE 16A)
- through-wiring to next trunking rail via serial plug and socket connection
- cable routing for additional on-site installation (e.g. for multiple circuits or emergency lighting infeed) is possible on the trunking rail with optionally available cable duct
- please order end cap sets separately
- please order mounting accessories separately
- it is mandatory that the assembly instructions must be observed when planning and installing the electrical installation
Results
Licross®, trunking rail, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | with Through-wiring 5x 2.5mm² | 2.5 |
Licross®, trunking rail, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
3000 | with Through-wiring 5x 2.5mm² | 4.6 |
Licross®, trunking rail, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
4500 | with Through-wiring 5x 2.5mm² | 6.7 |
Licross®, trunking rail, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | with Through-wiring 7x 2.5mm² | 2.5 |
Licross®, trunking rail, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
3000 | with Through-wiring 7x 2.5mm² | 4.7 |
Licross®, trunking rail, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
4500 | with Through-wiring 7x 2.5mm² | 6.9 |
Licross®, trunking rail, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | with Through-wiring 9x 2.5mm² | 2.6 |
Licross®, trunking rail, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
3000 | with Through-wiring 9x 2.5mm² | 4.9 |
Licross®, trunking rail, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
4500 | with Through-wiring 9x 2.5mm² | 7.1 |
Licross®, trunking rail, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | with Through-wiring 11x 2.5mm² | 2.7 |
Licross®, trunking rail, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
3000 | with Through-wiring 11x 2.5mm² | 5.0 |
Licross®, trunking rail, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
4500 | with Through-wiring 11x 2.5mm² | 7.3 |
Licross®, trunking rail, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | with Through-wiring 14x 2.5mm² | 2.8 |
Licross®, trunking rail, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
3000 | with Through-wiring 14x 2.5mm² | 5.2 |
Licross®, trunking rail, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
4500 | with Through-wiring 14x 2.5mm² | 7.6 |
Licross®, trunking rail, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | 1.9 |
Licross®, trunking rail, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
3000 | 3.6 |
Licross®, trunking rail, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
4500 | 5.0 |
Licross®, trunking rail, matt jet black (RAL 9005)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | with Through-wiring 7x 2.5mm² | 2.5 |
Licross®, trunking rail, matt jet black (RAL 9005)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
3000 | with Through-wiring 7x 2.5mm² | 4.7 |
Licross®, trunking rail, matt jet black (RAL 9005)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
4500 | with Through-wiring 7x 2.5mm² | 6.9 |
Licross®, trunking rail, matt jet black (RAL 9005)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | with Through-wiring 9x 2.5mm² | 2.6 |
Licross®, trunking rail, matt jet black (RAL 9005)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
3000 | with Through-wiring 9x 2.5mm² | 4.9 |
Licross®, trunking rail, matt jet black (RAL 9005)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
4500 | with Through-wiring 9x 2.5mm² | 7.1 |
Licross®, trunking rail, matt jet black (RAL 9005)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | with Through-wiring 11x 2.5mm² | 2.7 |
Licross®, trunking rail, matt jet black (RAL 9005)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
3000 | with Through-wiring 11x 2.5mm² | 5.0 |
Licross®, trunking rail, matt jet black (RAL 9005)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
4500 | with Through-wiring 11x 2.5mm² | 7.3 |
Licross®, trunking rail, matt jet black (RAL 9005)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | with Through-wiring 14x 2.5mm² | 2.8 |
Licross®, trunking rail, matt jet black (RAL 9005)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
3000 | with Through-wiring 14x 2.5mm² | 5.2 |
Licross®, trunking rail, matt jet black (RAL 9005)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
4500 | with Through-wiring 14x 2.5mm² | 7.6 |
Licross®, trunking rail, matt jet black (RAL 9005)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | 1.9 |
Licross®, trunking rail, matt jet black (RAL 9005)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
3000 | 3.6 |
Licross®, trunking rail, matt jet black (RAL 9005)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
4500 | 5.2 |
Licross®, trunking rail, metallic grey (RAL 9006)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | with Through-wiring 7x 2.5mm² | 2.5 |
Licross®, trunking rail, metallic grey (RAL 9006)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
3000 | with Through-wiring 7x 2.5mm² | 4.7 |
Licross®, trunking rail, metallic grey (RAL 9006)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
4500 | with Through-wiring 7x 2.5mm² | 6.9 |
Licross®, trunking rail, metallic grey (RAL 9006)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | with Through-wiring 9x 2.5mm² | 2.6 |
Licross®, trunking rail, metallic grey (RAL 9006)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
3000 | with Through-wiring 9x 2.5mm² | 4.9 |
Licross®, trunking rail, metallic grey (RAL 9006)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
4500 | with Through-wiring 9x 2.5mm² | 7.1 |
Licross®, trunking rail, metallic grey (RAL 9006)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | with Through-wiring 11x 2.5mm² | 2.7 |
Licross®, trunking rail, metallic grey (RAL 9006)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
3000 | with Through-wiring 11x 2.5mm² | 5.0 |
Licross®, trunking rail, metallic grey (RAL 9006)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
4500 | with Through-wiring 11x 2.5mm² | 7.3 |
Licross®, trunking rail, metallic grey (RAL 9006)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | with Through-wiring 14x 2.5mm² | 2.8 |
Licross®, trunking rail, metallic grey (RAL 9006)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
3000 | with Through-wiring 14x 2.5mm² | 5.2 |
Licross®, trunking rail, metallic grey (RAL 9006)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
4500 | with Through-wiring 14x 2.5mm² | 7.6 |
Licross®, trunking rail, metallic grey (RAL 9006)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | 1.9 |
Licross®, trunking rail, metallic grey (RAL 9006)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
3000 | 3.6 |
Licross®, trunking rail, metallic grey (RAL 9006)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
4500 | 5.2 |
Licross®, blank cover, for IP20/IP40 protection rating, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | 0.2 |
Licross®, blank cover, for IP20/IP40 protection rating, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
2250 | 0.3 |
Licross®, blank cover, for IP20/IP40 protection rating, matt jet black (RAL 9005)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | 0.2 |
Licross®, blank cover, for IP20/IP40 protection rating, metallic grey (RAL 9006)
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | 0.2 |
Licross®, blank cover, for protection rating IP50/IP54/IP64, white
L (mm) | Through-wiring | Wt. (kg) |
---|---|---|
1500 | 0.3 |
Licross®, trunking rail, white
Order No.: 51TR1C5GTIN (EAN): 4058352241806
L (mm) | 1500 |
---|---|
Through-wiring | with Through-wiring 5x 2.5mm² |
Wt. (kg) | 2.5 |
Licross®, trunking rail, white
Order No.: 51TR1F5GTIN (EAN): 4058352241981
L (mm) | 3000 |
---|---|
Through-wiring | with Through-wiring 5x 2.5mm² |
Wt. (kg) | 4.6 |
Licross®, trunking rail, white
Order No.: 51TR1J5GTIN (EAN): 4058352242162
L (mm) | 4500 |
---|---|
Through-wiring | with Through-wiring 5x 2.5mm² |
Wt. (kg) | 6.7 |
Licross®, trunking rail, white
Order No.: 51TR1C7GTIN (EAN): 4058352241813
L (mm) | 1500 |
---|---|
Through-wiring | with Through-wiring 7x 2.5mm² |
Wt. (kg) | 2.5 |
Licross®, trunking rail, white
Order No.: 51TR1F7GTIN (EAN): 4058352241998
L (mm) | 3000 |
---|---|
Through-wiring | with Through-wiring 7x 2.5mm² |
Wt. (kg) | 4.7 |
Licross®, trunking rail, white
Order No.: 51TR1J7GTIN (EAN): 4058352242179
L (mm) | 4500 |
---|---|
Through-wiring | with Through-wiring 7x 2.5mm² |
Wt. (kg) | 6.9 |
Licross®, trunking rail, white
Order No.: 51TR1C9GTIN (EAN): 4058352241844
L (mm) | 1500 |
---|---|
Through-wiring | with Through-wiring 9x 2.5mm² |
Wt. (kg) | 2.6 |
Licross®, trunking rail, white
Order No.: 51TR1F9GTIN (EAN): 4058352242025
L (mm) | 3000 |
---|---|
Through-wiring | with Through-wiring 9x 2.5mm² |
Wt. (kg) | 4.9 |
Licross®, trunking rail, white
Order No.: 51TR1J9GTIN (EAN): 4058352242209
L (mm) | 4500 |
---|---|
Through-wiring | with Through-wiring 9x 2.5mm² |
Wt. (kg) | 7.1 |
Licross®, trunking rail, white
Order No.: 51TR1CBGTIN (EAN): 4058352241875
L (mm) | 1500 |
---|---|
Through-wiring | with Through-wiring 11x 2.5mm² |
Wt. (kg) | 2.7 |
Licross®, trunking rail, white
Order No.: 51TR1FBGTIN (EAN): 4058352242056
L (mm) | 3000 |
---|---|
Through-wiring | with Through-wiring 11x 2.5mm² |
Wt. (kg) | 5.0 |
Licross®, trunking rail, white
Order No.: 51TR1JBGTIN (EAN): 4058352242230
L (mm) | 4500 |
---|---|
Through-wiring | with Through-wiring 11x 2.5mm² |
Wt. (kg) | 7.3 |
Licross®, trunking rail, white
Order No.: 51TR1CEGTIN (EAN): 4058352241905
L (mm) | 1500 |
---|---|
Through-wiring | with Through-wiring 14x 2.5mm² |
Wt. (kg) | 2.8 |
Licross®, trunking rail, white
Order No.: 51TR1FEGTIN (EAN): 4058352242087
L (mm) | 3000 |
---|---|
Through-wiring | with Through-wiring 14x 2.5mm² |
Wt. (kg) | 5.2 |
Licross®, trunking rail, white
Order No.: 51TR1JEGTIN (EAN): 4058352242261
L (mm) | 4500 |
---|---|
Through-wiring | with Through-wiring 14x 2.5mm² |
Wt. (kg) | 7.6 |
Licross®, trunking rail, white
Order No.: 51TR1C0GTIN (EAN): 4058352241752
L (mm) | 1500 |
---|---|
Through-wiring | |
Wt. (kg) | 1.9 |
Licross®, trunking rail, white
Order No.: 51TR1F0GTIN (EAN): 4058352241936
L (mm) | 3000 |
---|---|
Through-wiring | |
Wt. (kg) | 3.6 |
Licross®, trunking rail, white
Order No.: 51TR1J0GTIN (EAN): 4058352242117
L (mm) | 4500 |
---|---|
Through-wiring | |
Wt. (kg) | 5.0 |
Licross®, trunking rail, matt jet black (RAL 9005)
Order No.: 51TR3C7GTIN (EAN): 4058352242292
L (mm) | 1500 |
---|---|
Through-wiring | with Through-wiring 7x 2.5mm² |
Wt. (kg) | 2.5 |
Licross®, trunking rail, matt jet black (RAL 9005)
Order No.: 51TR3F7GTIN (EAN): 4058352242353
L (mm) | 3000 |
---|---|
Through-wiring | with Through-wiring 7x 2.5mm² |
Wt. (kg) | 4.7 |
Licross®, trunking rail, matt jet black (RAL 9005)
Order No.: 51TR3J7GTIN (EAN): 4058352242414
L (mm) | 4500 |
---|---|
Through-wiring | with Through-wiring 7x 2.5mm² |
Wt. (kg) | 6.9 |
Licross®, trunking rail, matt jet black (RAL 9005)
Order No.: 51TR3C9GTIN (EAN): 4058352265239
L (mm) | 1500 |
---|---|
Through-wiring | with Through-wiring 9x 2.5mm² |
Wt. (kg) | 2.6 |
Licross®, trunking rail, matt jet black (RAL 9005)
Order No.: 51TR3F9GTIN (EAN): 4058352265277
L (mm) | 3000 |
---|---|
Through-wiring | with Through-wiring 9x 2.5mm² |
Wt. (kg) | 4.9 |
Licross®, trunking rail, matt jet black (RAL 9005)
Order No.: 51TR3J9GTIN (EAN): 4058352265192
L (mm) | 4500 |
---|---|
Through-wiring | with Through-wiring 9x 2.5mm² |
Wt. (kg) | 7.1 |
Licross®, trunking rail, matt jet black (RAL 9005)
Order No.: 51TR3CBGTIN (EAN): 4058352242346
L (mm) | 1500 |
---|---|
Through-wiring | with Through-wiring 11x 2.5mm² |
Wt. (kg) | 2.7 |
Licross®, trunking rail, matt jet black (RAL 9005)
Order No.: 51TR3FBGTIN (EAN): 4058352242384
L (mm) | 3000 |
---|---|
Through-wiring | with Through-wiring 11x 2.5mm² |
Wt. (kg) | 5.0 |
Licross®, trunking rail, matt jet black (RAL 9005)
Order No.: 51TR3JBGTIN (EAN): 4058352242445
L (mm) | 4500 |
---|---|
Through-wiring | with Through-wiring 11x 2.5mm² |
Wt. (kg) | 7.3 |
Licross®, trunking rail, matt jet black (RAL 9005)
Order No.: 51TR3CEGTIN (EAN): 4058352265246
L (mm) | 1500 |
---|---|
Through-wiring | with Through-wiring 14x 2.5mm² |
Wt. (kg) | 2.8 |
Licross®, trunking rail, matt jet black (RAL 9005)
Order No.: 51TR3FEGTIN (EAN): 4058352265215
L (mm) | 3000 |
---|---|
Through-wiring | with Through-wiring 14x 2.5mm² |
Wt. (kg) | 5.2 |
Licross®, trunking rail, matt jet black (RAL 9005)
Order No.: 51TR3JEGTIN (EAN): 4058352265284
L (mm) | 4500 |
---|---|
Through-wiring | with Through-wiring 14x 2.5mm² |
Wt. (kg) | 7.6 |
Licross®, trunking rail, matt jet black (RAL 9005)
Order No.: 51TR3C0GTIN (EAN): 4058352446263
L (mm) | 1500 |
---|---|
Through-wiring | |
Wt. (kg) | 1.9 |
Licross®, trunking rail, matt jet black (RAL 9005)
Order No.: 51TR3F0GTIN (EAN): 4058352446294
L (mm) | 3000 |
---|---|
Through-wiring | |
Wt. (kg) | 3.6 |
Licross®, trunking rail, matt jet black (RAL 9005)
Order No.: 51TR3J0GTIN (EAN): 4058352446324
L (mm) | 4500 |
---|---|
Through-wiring | |
Wt. (kg) | 5.2 |
Licross®, trunking rail, metallic grey (RAL 9006)
Order No.: 51TR6C7GTIN (EAN): 4058352242476
L (mm) | 1500 |
---|---|
Through-wiring | with Through-wiring 7x 2.5mm² |
Wt. (kg) | 2.5 |
Licross®, trunking rail, metallic grey (RAL 9006)
Order No.: 51TR6F7GTIN (EAN): 4058352242537
L (mm) | 3000 |
---|---|
Through-wiring | with Through-wiring 7x 2.5mm² |
Wt. (kg) | 4.7 |
Licross®, trunking rail, metallic grey (RAL 9006)
Order No.: 51TR6J7GTIN (EAN): 4058352242599
L (mm) | 4500 |
---|---|
Through-wiring | with Through-wiring 7x 2.5mm² |
Wt. (kg) | 6.9 |
Licross®, trunking rail, metallic grey (RAL 9006)
Order No.: 51TR6C9GTIN (EAN): 4058352265307
L (mm) | 1500 |
---|---|
Through-wiring | with Through-wiring 9x 2.5mm² |
Wt. (kg) | 2.6 |
Licross®, trunking rail, metallic grey (RAL 9006)
Order No.: 51TR6F9GTIN (EAN): 4058352265208
L (mm) | 3000 |
---|---|
Through-wiring | with Through-wiring 9x 2.5mm² |
Wt. (kg) | 4.9 |
Licross®, trunking rail, metallic grey (RAL 9006)
Order No.: 51TR6J9GTIN (EAN): 4058352265178
L (mm) | 4500 |
---|---|
Through-wiring | with Through-wiring 9x 2.5mm² |
Wt. (kg) | 7.1 |
Licross®, trunking rail, metallic grey (RAL 9006)
Order No.: 51TR6CBGTIN (EAN): 4058352242520
L (mm) | 1500 |
---|---|
Through-wiring | with Through-wiring 11x 2.5mm² |
Wt. (kg) | 2.7 |
Licross®, trunking rail, metallic grey (RAL 9006)
Order No.: 51TR6FBGTIN (EAN): 4058352242568
L (mm) | 3000 |
---|---|
Through-wiring | with Through-wiring 11x 2.5mm² |
Wt. (kg) | 5.0 |
Licross®, trunking rail, metallic grey (RAL 9006)
Order No.: 51TR6JBGTIN (EAN): 4058352242629
L (mm) | 4500 |
---|---|
Through-wiring | with Through-wiring 11x 2.5mm² |
Wt. (kg) | 7.3 |
Licross®, trunking rail, metallic grey (RAL 9006)
Order No.: 51TR6CEGTIN (EAN): 4058352265314
L (mm) | 1500 |
---|---|
Through-wiring | with Through-wiring 14x 2.5mm² |
Wt. (kg) | 2.8 |
Licross®, trunking rail, metallic grey (RAL 9006)
Order No.: 51TR6FEGTIN (EAN): 4058352265154
L (mm) | 3000 |
---|---|
Through-wiring | with Through-wiring 14x 2.5mm² |
Wt. (kg) | 5.2 |
Licross®, trunking rail, metallic grey (RAL 9006)
Order No.: 51TR6JEGTIN (EAN): 4058352265185
L (mm) | 4500 |
---|---|
Through-wiring | with Through-wiring 14x 2.5mm² |
Wt. (kg) | 7.6 |
Licross®, trunking rail, metallic grey (RAL 9006)
Order No.: 51TR6C0GTIN (EAN): 4058352446379
L (mm) | 1500 |
---|---|
Through-wiring | |
Wt. (kg) | 1.9 |
Licross®, trunking rail, metallic grey (RAL 9006)
Order No.: 51TR6F0GTIN (EAN): 4058352446386
L (mm) | 3000 |
---|---|
Through-wiring | |
Wt. (kg) | 3.6 |
Licross®, trunking rail, metallic grey (RAL 9006)
Order No.: 51TR6J0GTIN (EAN): 4058352446416
L (mm) | 4500 |
---|---|
Through-wiring | |
Wt. (kg) | 5.2 |
Licross®, blank cover, for IP20/IP40 protection rating, white
Order No.: 59TL1A02GTIN (EAN): 4069025133670
L (mm) | 1500 |
---|---|
Through-wiring | |
Wt. (kg) | 0.2 |
Licross®, blank cover, for IP20/IP40 protection rating, white
Order No.: 59TL1B02GTIN (EAN): 4069025133687
L (mm) | 2250 |
---|---|
Through-wiring | |
Wt. (kg) | 0.3 |
Licross®, blank cover, for IP20/IP40 protection rating, matt jet black (RAL 9005)
Order No.: 59TL3AGTIN (EAN): 4058352272800
L (mm) | 1500 |
---|---|
Through-wiring | |
Wt. (kg) | 0.2 |
Licross®, blank cover, for IP20/IP40 protection rating, metallic grey (RAL 9006)
Order No.: 59TL6AGTIN (EAN): 4058352272848
L (mm) | 1500 |
---|---|
Through-wiring | |
Wt. (kg) | 0.2 |
Licross®, blank cover, for protection rating IP50/IP54/IP64, white
Order No.: 59TP1AGTIN (EAN): 4058352299463
L (mm) | 1500 |
---|---|
Through-wiring | |
Wt. (kg) | 0.3 |
Mandatory accessory
Order No.: 59TL1SGTIN (EAN): 4058352272589 | Show details |
Order No.: 59TL1S0GTIN (EAN): 4058352553145 | Show details |
Order No.: 59TL1SMGTIN (EAN): 4058352482971 | Show details |
Order No.: 59TL3SGTIN (EAN): 4058352272824 | Show details |
Order No.: 59TL6SGTIN (EAN): 4058352272862 | Show details |
Order No.: 59TP1SGTIN (EAN): 4058352299487 | Show details |
Order No.: 59TP1S0GTIN (EAN): 4069025096548 | Show details |
Order No.: 59TP1SMGTIN (EAN): 4058352482995 | Show details |
Order No.: 59TR9DGTIN (EAN): 4058352272886 | Show details |
Order No.: 59TR9CGTIN (EAN): 4058352293133 | Show details |
Order No.: 59TR9RAGTIN (EAN): 4058352386507 | Show details |
Order No.: 59TR9RGTIN (EAN): 4058352293171 | Show details |
Order No.: 59TR9RMGTIN (EAN): 4058352483015 | Show details |
Order No.: 59TR9R05GTIN (EAN): 4058352452431 | Show details |
Order No.: 59TR9RSGTIN (EAN): 4058352298695 | Show details |
Order No.: 59TR9RSMGTIN (EAN): 4058352483039 | Show details |
Order No.: 59TR9RS5GTIN (EAN): 4058352452523 | Show details |
Order No.: 59TR9RCGTIN (EAN): 4058352298664 | Show details |
Order No.: 59TR9RC3GTIN (EAN): 4058352452462 | Show details |
Order No.: 59TR9RC5GTIN (EAN): 4058352452493 | Show details |
Order No.: 59TR9RQ30GTIN (EAN): 4069025155351 | Show details |
Order No.: 59TR9RQ50GTIN (EAN): 4069025155382 | Show details |
Order No.: 59TR9KGTIN (EAN): 4058352293157 | Show details |
Order No.: 5LY9001GTIN (EAN): 4039806184290 | Show details |
Order No.: 5LY9004GTIN (EAN): 4039806184368 | Show details |
Order No.: 5LY9002GTIN (EAN): 4039806184313 | Show details |
Order No.: 59TR9NGTIN (EAN): 4058352591840 | Show details |
Optional accessory
Order No.: 59TL1FN0GTIN (EAN): 4058352500606 | Show details |
Order No.: 59TL3FNKGTIN (EAN): 4058352328200 | Show details |
Order No.: 59TL3FTKGTIN (EAN): 4058352328231 | Show details |
Order No.: 59TL1FN7GTIN (EAN): 4058352339923 | Show details |
Order No.: 59TL1FNEGTIN (EAN): 4058352339947 | Show details |
Order No.: 59TL3FN7GTIN (EAN): 4058352340042 | Show details |
Order No.: 59TL3FNEGTIN (EAN): 4058352340066 | Show details |
Order No.: 59TL6FN7GTIN (EAN): 4058352340165 | Show details |
Order No.: 59TL6FNEGTIN (EAN): 4058352340189 | Show details |
Order No.: 59TL3FTKFEGTIN (EAN): 4058352028018 | Show details |
Order No.: 59TL1CN7GTIN (EAN): 4058352339480 | Show details |
Order No.: 59TL1CNEGTIN (EAN): 4058352339909 | Show details |
Order No.: 59TL3CN7GTIN (EAN): 4058352340004 | Show details |
Order No.: 59TL3CNEGTIN (EAN): 4058352340028 | Show details |
Order No.: 59TL6CN7GTIN (EAN): 4058352340127 | Show details |
Order No.: 59TL6CNEGTIN (EAN): 4058352340141 | Show details |
Order No.: 59TL1MN7GTIN (EAN): 4058352471685 | Show details |
Order No.: 59TL1MNEGTIN (EAN): 4058352471708 | Show details |
Order No.: 59TL3MN7GTIN (EAN): 4058352471722 | Show details |
Order No.: 59TL3MNEGTIN (EAN): 4058352471746 | Show details |
Order No.: 59TL6MN7GTIN (EAN): 4058352471760 | Show details |
Order No.: 59TL6MNEGTIN (EAN): 4058352471784 | Show details |
Order No.: 59TL1FT7GTIN (EAN): 4058352339961 | Show details |
Order No.: 59TL1FTEGTIN (EAN): 4058352339992 | Show details |
Order No.: 59TL3FT7GTIN (EAN): 4058352340080 | Show details |
Order No.: 59TL3FTEGTIN (EAN): 4058352340110 | Show details |
Order No.: 59TL6FT7GTIN (EAN): 4058352340202 | Show details |
Order No.: 59TL6FTEGTIN (EAN): 4058352340233 | Show details |
Order No.: 59TL3FTKFEGTIN (EAN): 4058352028018 | Show details |
Order No.: 59TR1CLGTIN (EAN): 4058352487020 | Show details |
Order No.: 59TR1CTGTIN (EAN): 4058352487044 | Show details |
Order No.: 59TR1CXGTIN (EAN): 4058352485385 | Show details |
Order No.: 59TR3CLGTIN (EAN): 4058352487068 | Show details |
Order No.: 59TR3CTGTIN (EAN): 4058352487082 | Show details |
Order No.: 59TR3CXGTIN (EAN): 4058352485415 | Show details |
Order No.: 59TR6CLGTIN (EAN): 4058352487112 | Show details |
Order No.: 59TR6CTGTIN (EAN): 4058352487129 | Show details |
Order No.: 59TR6CXGTIN (EAN): 4058352485422 | Show details |
Order No.: 59TL3LX7GTIN (EAN): 4058352487600 | Show details |
Order No.: 59TL3LXEGTIN (EAN): 4058352487631 | Show details |
Order No.: 59TL3T07GTIN (EAN): 4058352487648 | Show details |
Order No.: 59TL3T0EGTIN (EAN): 4058352487662 | Show details |
Order No.: 59TP1FN0GTIN (EAN): 4058352500620 | Show details |
Order No.: 59TL3FNKGTIN (EAN): 4058352328200 | Show details |
Order No.: 59TL3FTKGTIN (EAN): 4058352328231 | Show details |
Order No.: 59TP1FN7GTIN (EAN): 4058352340288 | Show details |
Order No.: 59TP1FNEGTIN (EAN): 4058352340301 | Show details |
Order No.: 59TP1CN7GTIN (EAN): 4058352340240 | Show details |
Order No.: 59TP1CNEGTIN (EAN): 4058352340264 | Show details |
Order No.: 59TP1MN7GTIN (EAN): 4058352471807 | Show details |
Order No.: 59TP1MNEGTIN (EAN): 4058352471821 | Show details |
Order No.: 59TP1FT7GTIN (EAN): 4058352340325 | Show details |
Order No.: 59TP1FTEGTIN (EAN): 4058352340349 | Show details |
Order No.: 59TP1CGTIN (EAN): 4058352299470 | Show details |
Order No.: 59TP1CMGTIN (EAN): 4058352483343 | Show details |
Order No.: 59TP1ASGTIN (EAN): 4058352319147 | Show details |
Order No.: 59TL0AGTIN (EAN): 4058352535325 | Show details |
Order No.: 59TR1DFGTIN (EAN): 4058352426104 | Show details |
Order No.: 59TR3DFGTIN (EAN): 4058352426166 | Show details |
Order No.: 51TR0UGTIN (EAN): 4058352452837 | Show details |
Order No.: 59TR0EGTIN (EAN): 4058352585900 | Show details |
Order No.: 58FS005GTIN (EAN): 4058352477052 | Show details |
