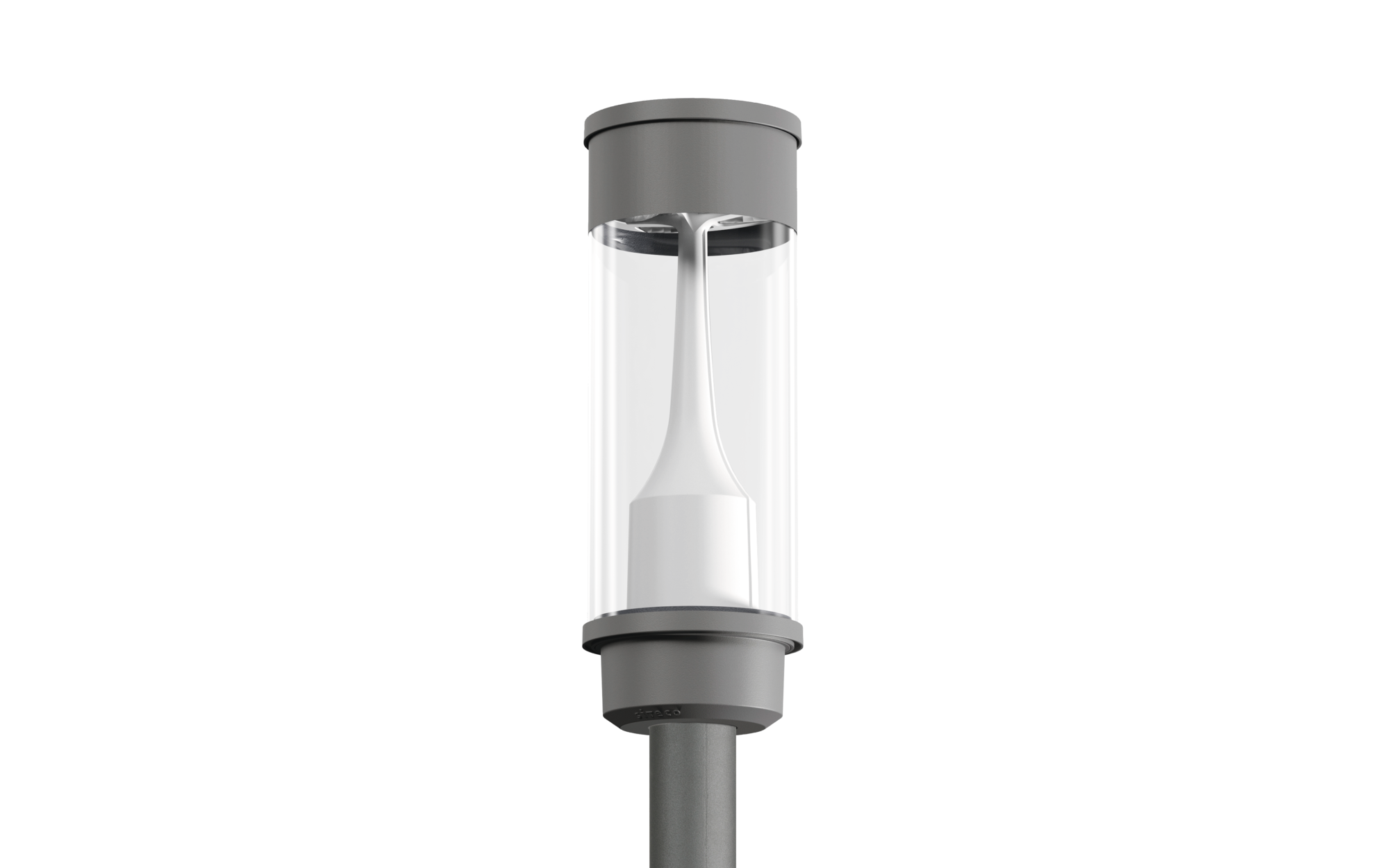

Litepole iQ
One for all - a module for a wide variety of applications and at the same time efficient and elegant. The Module 540 combines high visual comfort and innovative LED technology with a unique optical guide. Different luminaire designs offer maximum flexibility for a wide variety of architectural requirements and functional applications. Installation and electrical connection on the mast can be done in a few simple steps and without special tools. With its high light output, low energy consumption is already guaranteed. The patented luminous flux tracking system CLO 2.0 ensures even more efficiency.
Flexible and modular into the future of city lighting
Litepole with Smart Interface
Intro to ProductfamilyData
Article mast luminaire
Lighting effect direct asymmetric wide distribution
Light distribution ST1.2a
Net luminous flux 1540lm
Colour temperature 3000K
Control D4i
Smart City with Smart Interface
Supplement Smart Interface above; Smart Interface below; Smart Interface below and above
Protection rating IP65
Insulation class insulation class II (safety insulation)
Specials
Configuration & Datasheets
- luminaire incl. pre-installed connection cable, l = 5.5m
- please order mast reducer separately if required
- luminaires with Smart Interface available on request
Results
Litepole, ST1.2a, direct asymmetric wide distribution, transparent, with Smart Interface below and above
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Supplement | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|
3000K | CRI > 80 | 1540lm | ST1.2a | D4i | Smart Interface below and above | 14 | 15 | 8 | 5.9 | 1577.20 |
Litepole, ST1.2a, direct asymmetric wide distribution, transparent, with Smart Interface below
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Supplement | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|
3000K | CRI > 80 | 1540lm | ST1.2a | D4i | Smart Interface below | 14 | 15 | 8 | 5.9 | 1537.80 |
Litepole, ST1.2a, direct asymmetric wide distribution, transparent, with Smart Interface above
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Supplement | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|
3000K | CRI > 80 | 1540lm | ST1.2a | D4i | Smart Interface above | 14 | 15 | 8 | 5.9 | 1537.80 |
Litepole, ST1.2a, direct asymmetric wide distribution, transparent, with Smart Interface below and above
Order No.: 5XA5413ET14H000032GTIN (EAN): 4058352565025
Colour temperature | 3000K |
---|---|
Colour rendering | CRI > 80 |
Luminous flux | 1540lm |
Light distribution | ST1.2a |
Control | D4i |
Supplement | Smart Interface below and above |
Pnom begin service life | 14 |
Pnom end service life | 15 |
Pred at 50% lumin. flux | 8 |
Wt. (kg) | 5.9 |
Price (EUR) | 1577.20 |
Litepole, ST1.2a, direct asymmetric wide distribution, transparent, with Smart Interface below
Order No.: 5XA5413ER14H000032GTIN (EAN): 4058352564998
Colour temperature | 3000K |
---|---|
Colour rendering | CRI > 80 |
Luminous flux | 1540lm |
Light distribution | ST1.2a |
Control | D4i |
Supplement | Smart Interface below |
Pnom begin service life | 14 |
Pnom end service life | 15 |
Pred at 50% lumin. flux | 8 |
Wt. (kg) | 5.9 |
Price (EUR) | 1537.80 |
Litepole, ST1.2a, direct asymmetric wide distribution, transparent, with Smart Interface above
Order No.: 5XA5413ES14H000032GTIN (EAN): 4058352565001
Colour temperature | 3000K |
---|---|
Colour rendering | CRI > 80 |
Luminous flux | 1540lm |
Light distribution | ST1.2a |
Control | D4i |
Supplement | Smart Interface above |
Pnom begin service life | 14 |
Pnom end service life | 15 |
Pred at 50% lumin. flux | 8 |
Wt. (kg) | 5.9 |
Price (EUR) | 1537.80 |
Optional accessory
Order No.: 5XA54000XSGTIN (EAN): 4050737730073 | Show details |
Order No.: 5XA54000XSAGTIN (EAN): 4058352161326 | Show details |
Order No.: 5XA54000XBSGTIN (EAN): 4050737971445 | Show details |
Order No.: 5XA54000XBLGTIN (EAN): 4050737971421 | Show details |
Order No.: 5XA54000XBXLGTIN (EAN): 4058352415573 | Show details |
Order No.: 5XA54001XSGTIN (EAN): 4050737754895 | Show details |
Order No.: 5LA52201XRGTIN (EAN): 4039806232175 | Show details |
Order No.: 5NY52660XG18GTIN (EAN): 4039806215932 | Show details |
Order No.: 5NY52650XG18GTIN (EAN): 4039806216694 | Show details |
Order No.: 5NY52650XG28GTIN (EAN): 4039806215833 | Show details |
Order No.: 5NY52660XN18GTIN (EAN): 4039806216014 | Show details |
Order No.: 5NY52650XN18GTIN (EAN): 4039806215857 | Show details |
Order No.: 5NY52650XN28GTIN (EAN): 4039806215895 | Show details |
Order No.: 5NA54900XG08GTIN (EAN): 4050737794259 | Show details |
Order No.: 5NY70062DKGTIN (EAN): 4058352552247 | Show details |
