Litepole iQ
One for all - a module for a wide variety of applications and at the same time efficient and elegant. The Module 540 combines high visual comfort and innovative LED technology with a unique optical guide. Different luminaire designs offer maximum flexibility for a wide variety of architectural requirements and functional applications. Installation and electrical connection on the mast can be done in a few simple steps and without special tools. With its high light output, low energy consumption is already guaranteed. The patented luminous flux tracking system CLO 2.0 ensures even more efficiency.
Flexible and modular into the future of city lighting
Litepole with Module 540 iQ white (pre-assembled, incl. connection cable)

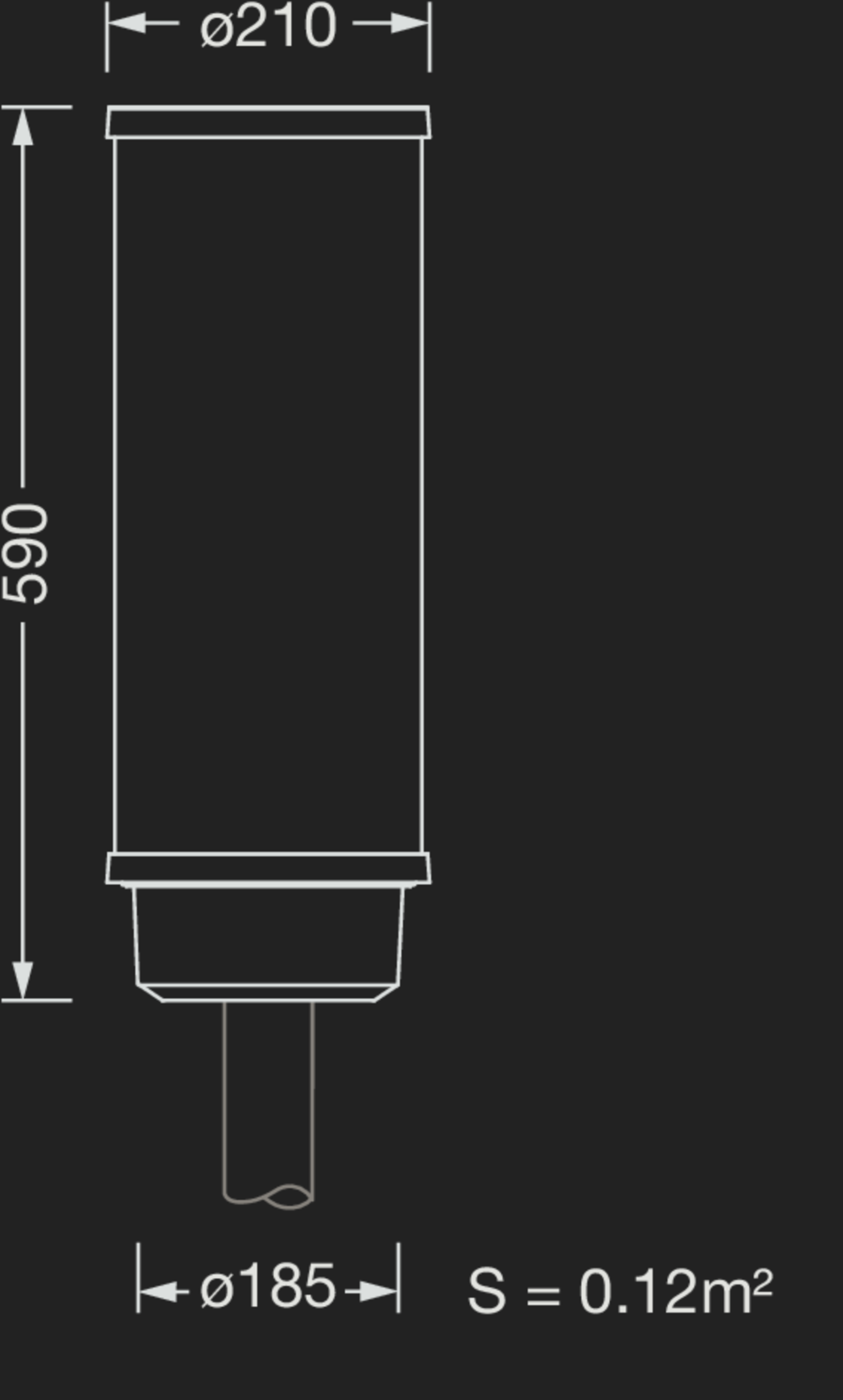

Intro to Productfamily![](/asset/emea_en/en/PNG2000AN/1001065/dd-1487.png)
Data
Article mast luminaire
Lighting effect direct asymmetric wide distribution; direct highly asymmetric extremely wide distribution; direct symmetric wide distribution
Light distribution ST1.2a; P1.0a; PL1.2s
Net luminous flux 1510lm to 4700lm
Colour temperature 3000K
Control iQ Street-Remote
Protection rating IP65
Insulation class insulation class II (safety insulation)
Specials
Configuration & Datasheets
- further light colours and connection cable variants on request
- please order mast reducer separately if required
- luminaire incl. pre-installed connection cable, l = 5.0m
- Setting the luminaire with Street-Remote: with the SITECO iQ app on the SITECO iQ handheld (5EA6HBR01) or your own smart phone
- Setting the luminaire with Desk-Remote: with the SITECO iQ app on the SITECO iQ handheld (5EA6HBR01) or your own smart phone (RFID dongle 5EA6ABR01 is also required for transferring smartphone/luminaire)
- SITECO offers the SITECO Connect Group Control (230V or 12/24V) product to use the Smart Wire function '10 levels'. A communication module is also available with which remote access is possible and radio clock functionality is provided.
- Smart Interface luminaires currently without iQ functionality
Results
Litepole iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
---|---|---|---|---|---|---|---|---|
3000K | CRI > 70 | 1510lm | P1.0a | iQ Street-Remote | 11 | 11 | 5 | 5.9 |
Litepole iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
---|---|---|---|---|---|---|---|---|
3000K | CRI > 70 | 4700lm | P1.0a | iQ Street-Remote | 34 | 36 | 15 | 5.9 |
Litepole iQ, PL1.2s, direct symmetric wide distribution, transparent, standard
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
---|---|---|---|---|---|---|---|---|
3000K | CRI > 70 | 2970lm | PL1.2s | iQ Street-Remote | 19 | 21 | 10 | 5.9 |
Litepole iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
---|---|---|---|---|---|---|---|---|
3000K | CRI > 70 | 1540lm | ST1.2a | iQ Street-Remote | 11 | 11 | 5 | 5.9 |
Litepole iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard
Order No.: 5XA5415FF14H000022GTIN (EAN): 4058352636459
Colour temperature | 3000K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 1510lm |
Light distribution | P1.0a |
Control | iQ Street-Remote |
Pnom begin service life | 11 |
Pnom end service life | 11 |
Pred at 50% lumin. flux | 5 |
Wt. (kg) | 5.9 |
Litepole iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power
Order No.: 5XA5415FF14HP00022GTIN (EAN): 4058352636473
Colour temperature | 3000K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 4700lm |
Light distribution | P1.0a |
Control | iQ Street-Remote |
Pnom begin service life | 34 |
Pnom end service life | 36 |
Pred at 50% lumin. flux | 15 |
Wt. (kg) | 5.9 |
Litepole iQ, PL1.2s, direct symmetric wide distribution, transparent, standard
Order No.: 5XA5415JF14H000022GTIN (EAN): 4058352636527
Colour temperature | 3000K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 2970lm |
Light distribution | PL1.2s |
Control | iQ Street-Remote |
Pnom begin service life | 19 |
Pnom end service life | 21 |
Pred at 50% lumin. flux | 10 |
Wt. (kg) | 5.9 |
Litepole iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard
Order No.: 5XA5415EF14H000022GTIN (EAN): 4058352635278
Colour temperature | 3000K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 1540lm |
Light distribution | ST1.2a |
Control | iQ Street-Remote |
Pnom begin service life | 11 |
Pnom end service life | 11 |
Pred at 50% lumin. flux | 5 |
Wt. (kg) | 5.9 |
Optional accessory
Order No.: 5XA54000XSGTIN (EAN): 4050737730073 | Show details |
Order No.: 5XA54000XSAGTIN (EAN): 4058352161326 | Show details |
Order No.: 5XA54000XBSGTIN (EAN): 4050737971445 | Show details |
Order No.: 5XA54000XBLGTIN (EAN): 4050737971421 | Show details |
Order No.: 5XA54000XBXLGTIN (EAN): 4058352415573 | Show details |
Order No.: 5XA54001XSGTIN (EAN): 4050737754895 | Show details |
Order No.: 5LA52201XRGTIN (EAN): 4039806232175 | Show details |
Order No.: 5NY70062DKGTIN (EAN): 4058352552247 | Show details |
Order No.: 5NY52660XG18GTIN (EAN): 4039806215932 | Show details |
Order No.: 5NY52650XG18GTIN (EAN): 4039806216694 | Show details |
Order No.: 5NY52650XG28GTIN (EAN): 4039806215833 | Show details |
Order No.: 5NY52660XN18GTIN (EAN): 4039806216014 | Show details |
Order No.: 5NY52650XN18GTIN (EAN): 4039806215857 | Show details |
Order No.: 5NY52650XN28GTIN (EAN): 4039806215895 | Show details |
Order No.: 5NA54900XG08GTIN (EAN): 4050737794259 | Show details |
Order No.: 5NA54903XG08GTIN (EAN): 4058352279946 | Show details |
