Bell
A classic, decorative design – simultaneously better light and with outstanding LED lighting technology. The high-efficiency LED module in combination with the patented CLO 2.0 luminous flux tracking guarantees energy savings of up to 80% compared to old systems and enables extremely short payback periods. The intelligent optic concept with HD faceted reflectors achieves precise light control without glare. Customized light distributions and two light colours (3000/4000K) offer maximum flexibility in the application – from parking lots and residential areas to service and collection roads. The Bell is available both as a complete luminaire and as a refurbishment solution for existing obsolete installations. With the modernization solution only the Bell LED module needs to be replaced – and completely without tools.
The classic with state-of-the-art LED technology
![](/asset/de_en/en/PNG/1007395/impression-1469-1.png)
Producttypes
Small Bell

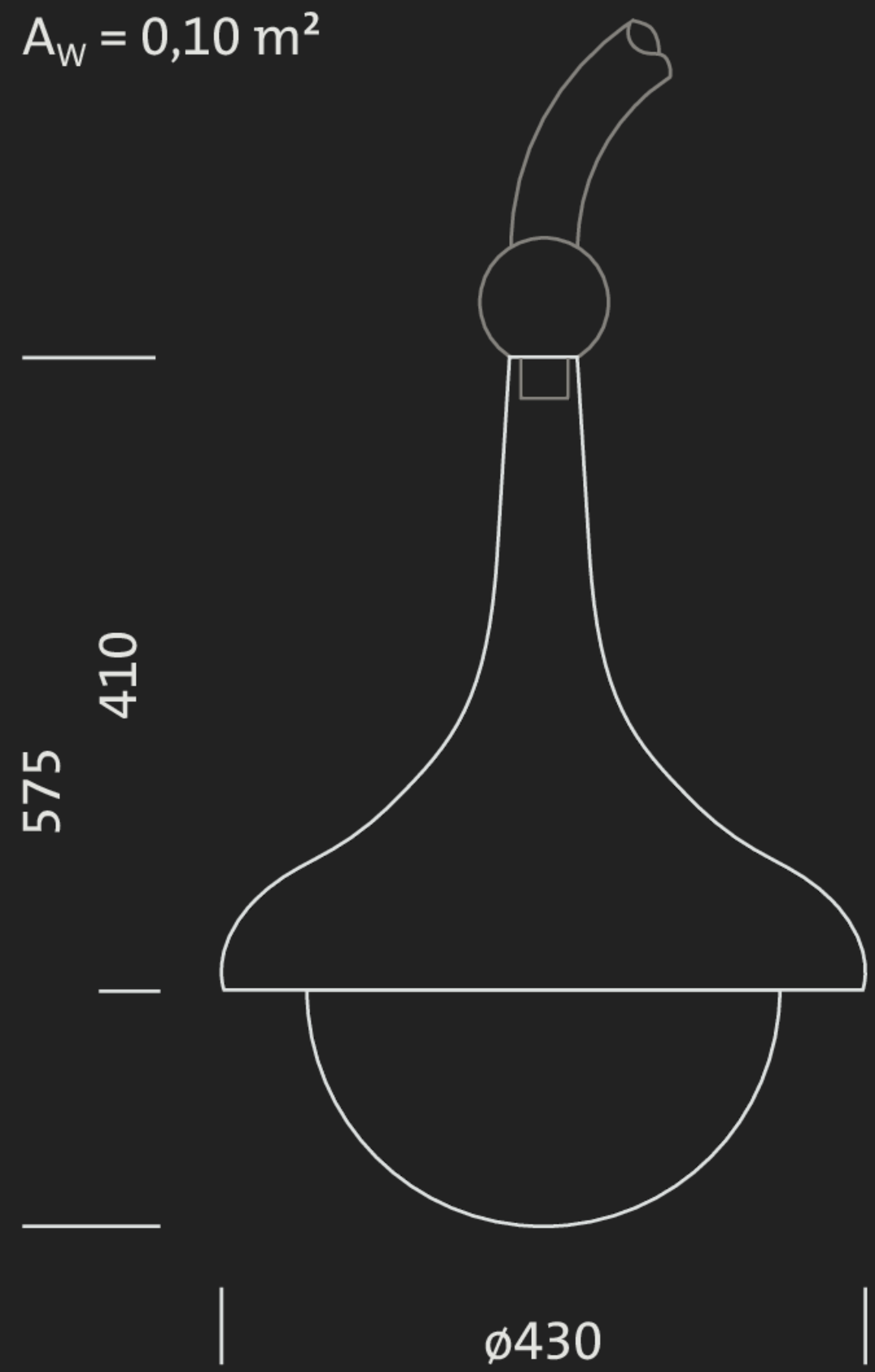

Intro to Productfamily![](/asset/de_en/en/PNG2000AN/1000788/dd-1470.png)
Data
Article mast luminaire
Net luminous flux 1640lm to 1750lm
Colour temperature 3000K; 4000K
Lighting effect direct asymmetric wide distribution
Light distribution ST1.2a
Protection rating IP54
Insulation class insulation class II (safety insulation)
Specials
Configuration & Datasheets
- please order curved mast extension separately
- please order shielding on building side separately if required
- please order Siteco® Service Box for configuration of Plus version separately if required
- luminaire colour: Siteco® metallic grey (DB 702S) as standard; (further DB and RAL colours on request)
Results
with ECG Plus, enclosure, transparent
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
3000K | CRI > 70 | 1640lm | ST1.2a | Plus | 13 | 14 | 7 | 5.3 | 947.80 |
with ECG Plus, enclosure, transparent
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 70 | 1730lm | ST1.2a | Plus | 13 | 14 | 7 | 5.3 | 947.80 |
with ECG Plus, enclosure, transparent structured
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
3000K | CRI > 70 | 1660lm | ST1.2a | Plus | 13 | 14 | 7 | 5.3 | 961.90 |
with ECG Plus, enclosure, transparent structured
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 70 | 1750lm | ST1.2a | Plus | 13 | 14 | 7 | 5.3 | 961.90 |
with ECG Plus, enclosure, transparent
Order No.: 5XA1573E1B108GTIN (EAN): 4058352167977
Colour temperature | 3000K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 1640lm |
Light distribution | ST1.2a |
Control | Plus |
Pnom begin service life | 13 |
Pnom end service life | 14 |
Pred at 50% lumin. flux | 7 |
Wt. (kg) | 5.3 |
Price (EUR) | 947.80 |
with ECG Plus, enclosure, transparent
Order No.: 5XA1573K1B108GTIN (EAN): 4058352168080
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 1730lm |
Light distribution | ST1.2a |
Control | Plus |
Pnom begin service life | 13 |
Pnom end service life | 14 |
Pred at 50% lumin. flux | 7 |
Wt. (kg) | 5.3 |
Price (EUR) | 947.80 |
with ECG Plus, enclosure, transparent structured
Order No.: 5XA1573E1B208GTIN (EAN): 4058352167960
Colour temperature | 3000K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 1660lm |
Light distribution | ST1.2a |
Control | Plus |
Pnom begin service life | 13 |
Pnom end service life | 14 |
Pred at 50% lumin. flux | 7 |
Wt. (kg) | 5.3 |
Price (EUR) | 961.90 |
with ECG Plus, enclosure, transparent structured
Order No.: 5XA1573K1B208GTIN (EAN): 4058352168073
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 1750lm |
Light distribution | ST1.2a |
Control | Plus |
Pnom begin service life | 13 |
Pnom end service life | 14 |
Pred at 50% lumin. flux | 7 |
Wt. (kg) | 5.3 |
Price (EUR) | 961.90 |
Mandatory accessory
Order No.: 5NY15711XX08GTIN (EAN): 4039806215215 | Show details |
Order No.: 5NY15721XX08GTIN (EAN): 4039806215451 | Show details |
Order No.: 5NY15722XX08GTIN (EAN): 4039806370747 | Show details |
Order No.: 5NY15711XA08GTIN (EAN): 4039806215055 | Show details |
Order No.: 5NY15721XA08GTIN (EAN): 4039806215291 | Show details |
Order No.: 5NY15722XA08GTIN (EAN): 4039806215536 | Show details |
Order No.: 5NY15711XF08GTIN (EAN): 4039806215130 | Show details |
Order No.: 5NY15721XF08GTIN (EAN): 4039806215376 | Show details |
Order No.: 5NY15701XW08GTIN (EAN): 4039806214898 | Show details |
Optional accessory
Order No.: 5NA15700XB1GTIN (EAN): 4050737087979 | Show details |
