TV 20, Light colour 840, DALI, 2x IK10

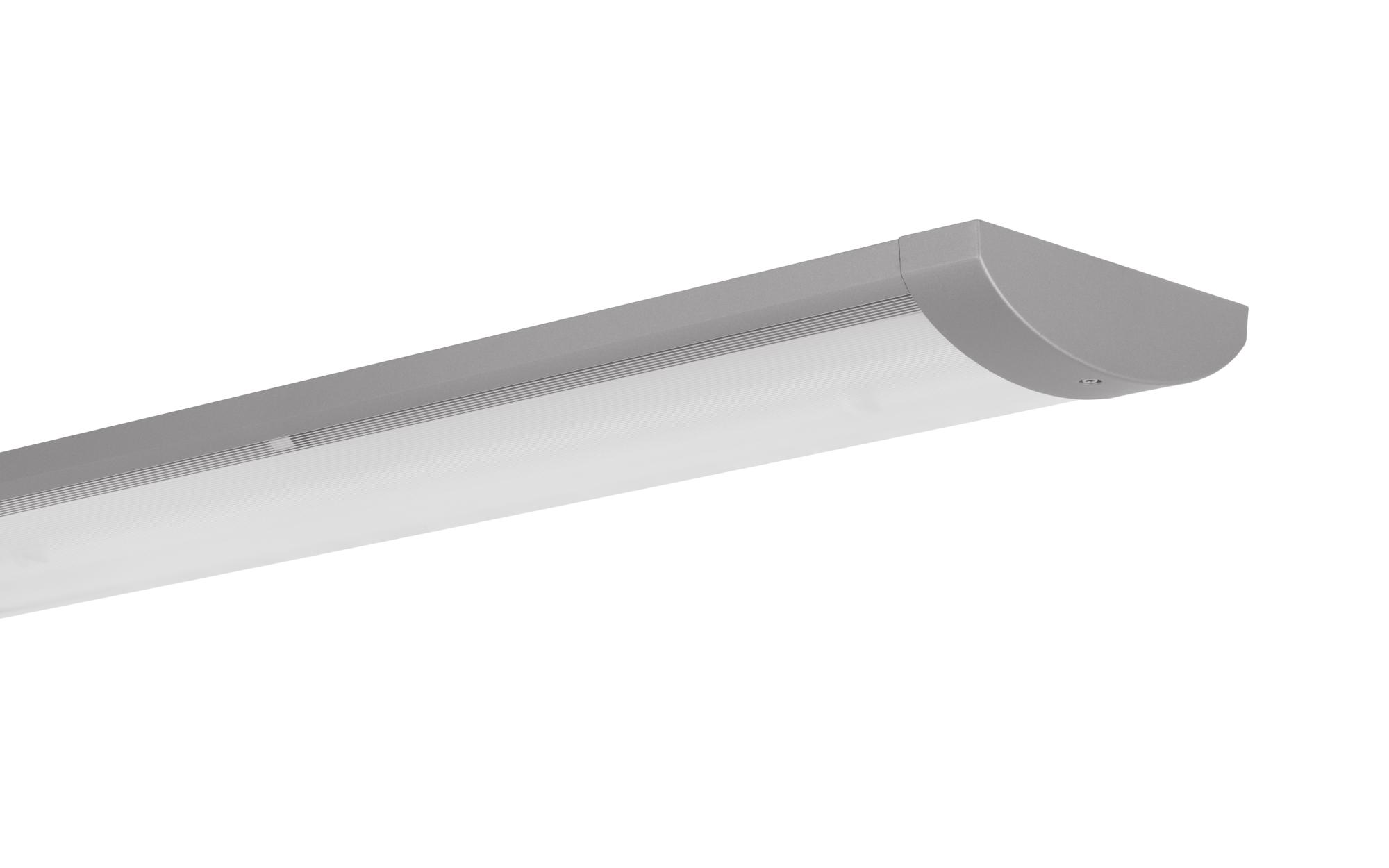

CloseArticle vandal-proof luminaire
Product name TV 20
Lamp LED
Rated luminous flux 3960lm
Luminous efficacy 107lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 37W
Service life 50000h (L80/B10) at AT = 25°C
Protection rating IP65
Impact resistance 2x IK10
Weight 6.9kg

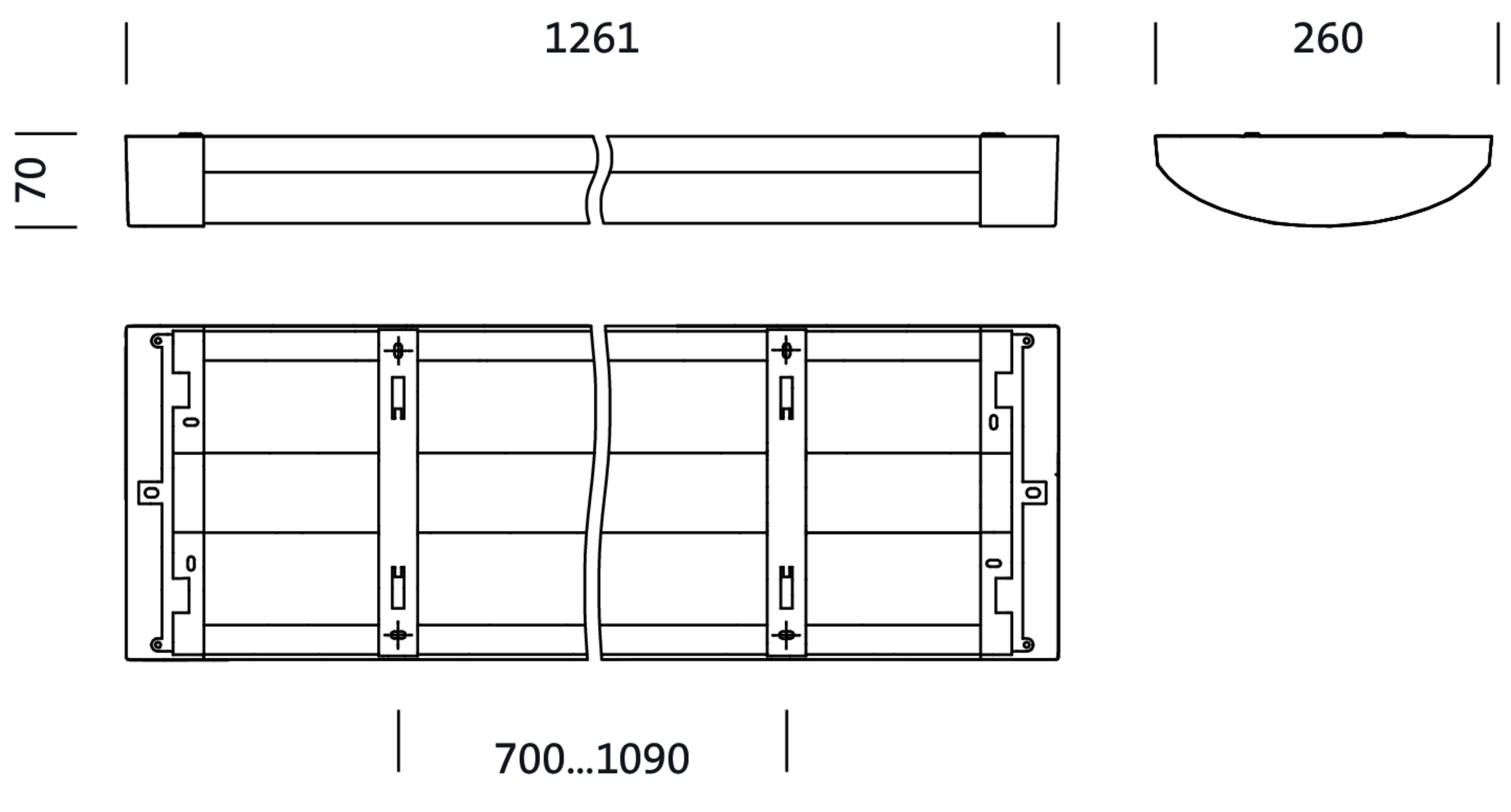

TV 20, vandal-proof luminaire, primary light control with specular reflector, of aluminium, matt, primary optical cover: enclosure, of PC, frosted, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 3.960lm, luminous efficacy: 107lm/W, light colour: 840, colour temperature: 4000K, control gear: ECG DALI, mains connection: 230V, AC, 50Hz, rated input power: 37W, luminaire housing, of aluminium, coated, Siteco® metallic grey (DB 702S), with wall and ceiling fixing element, length: 1.261mm, width: 260mm, height: 70mm, protection rating (complete): IP65, insulation class (complete): insulation class I (protective earthing), certification: CE, protection symbol: F, impact resistance: 2x IK10, standard: EN 60598, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
![](/asset/uk_en/%2A/PNG500A/1000164/5XA861D4N0J.png)
![](/asset/uk_en/%2A/PNG500A/1000142/5XA861D4N0J.png)
![](/asset/uk_en/%2A/PNG500A/1000166/5XA861D4N0J.png)
![](/asset/uk_en/%2A/PNG500A/1000177/5XA861D4N0J.png)
Product details
![](/asset/uk_en/%2A/LIDPIC/1155697/5XA861D4N0J_1xLED-4000K---CRI-%3E%3D-80_56537_4.jpg)

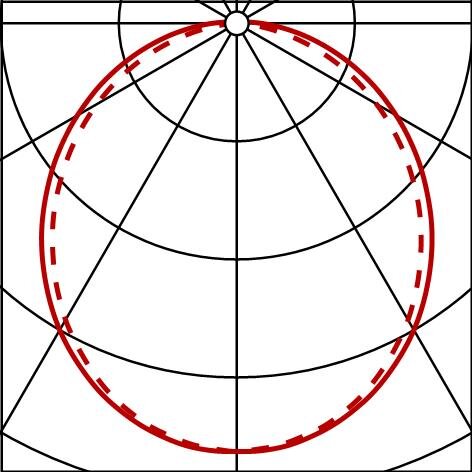

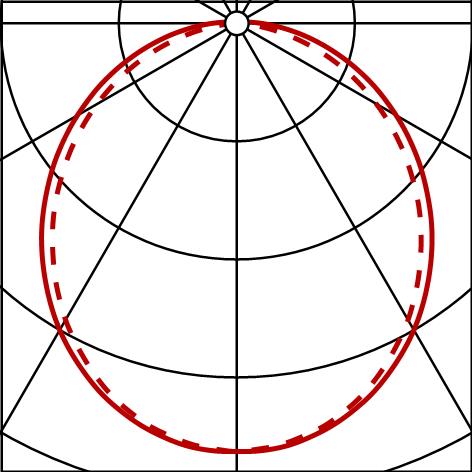

Photometric report / planning data
TV20VPL
LED,3960lm840,DALI,PC,dir,surf
Ordercode: 5XA861D4N0J
