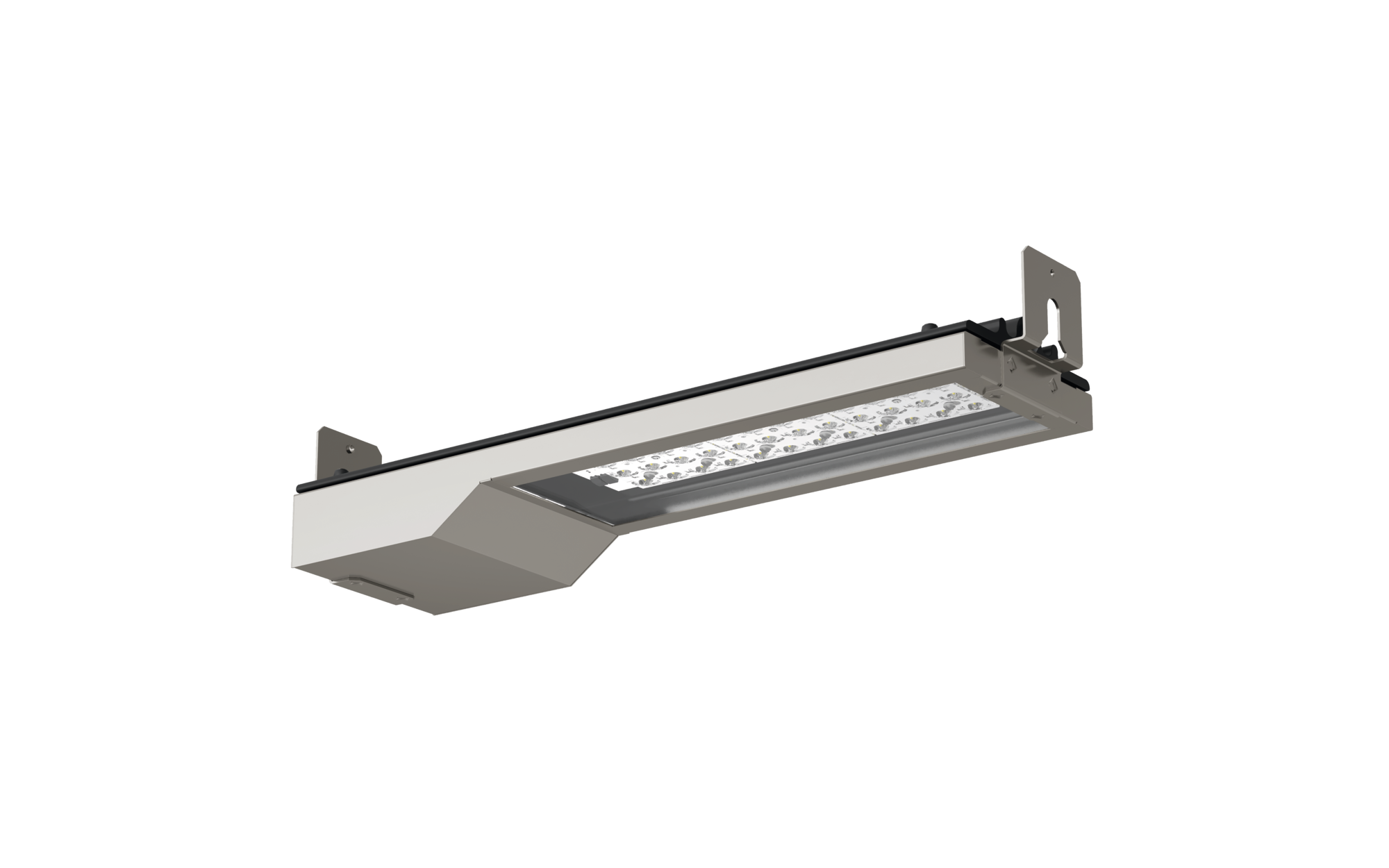

TL 33 mini, DALI
CloseArticle tunnel luminaire
Product name TL 33 mini
Lamp LED
Rated luminous flux 9500lm
Luminous efficacy 142lm/W
Colour temperature 5000K
Colour rendering CRI > 70
Rated input power 67W
Service life 100000h (L95/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK09
Weight 5.0kg

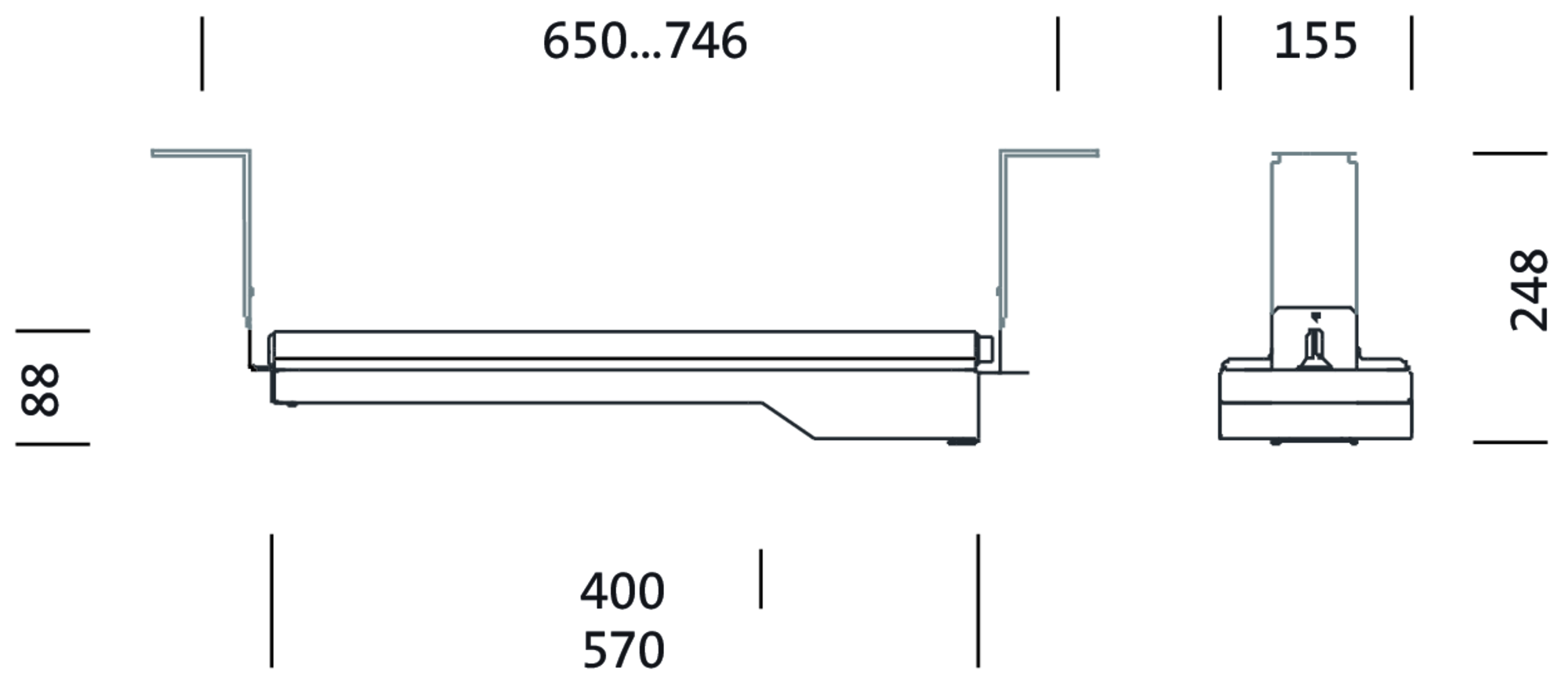

TL 33 mini, tunnel luminaire, primary optical cover: cover panel, of toughened safety glass, transparent, non-reflecting, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, connection on mains side,LED, 5-pole, max. 1.5mm² (3G+2), High Power LED, rated luminous flux: 9.500lm, luminous efficacy: 142lm/W, light colour: 750, colour temperature: 5000K, control gear: ECG DALI, with plug connection, mains connection: 220..240V, AC, 50/60Hz, connection cable plug integrated into luminaire housing at face end / socket provided on-site (Wieland RST: type 46.051.4553.1), rated input power: 67W, housing, of stainless steel 1.4404 (AISI316), etched and passivated, length: 650mm, width: 155mm, height: 88mm, heat sink, of Al Mg 2, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, impact resistance: IK09, permissible operating ambient temperature: -25..+55°C, packaging unit: 1 piece
