Floodlight FL 11 maxi pro, floodlight, PL33T, asymmetric distribution
CloseArticle floodlight

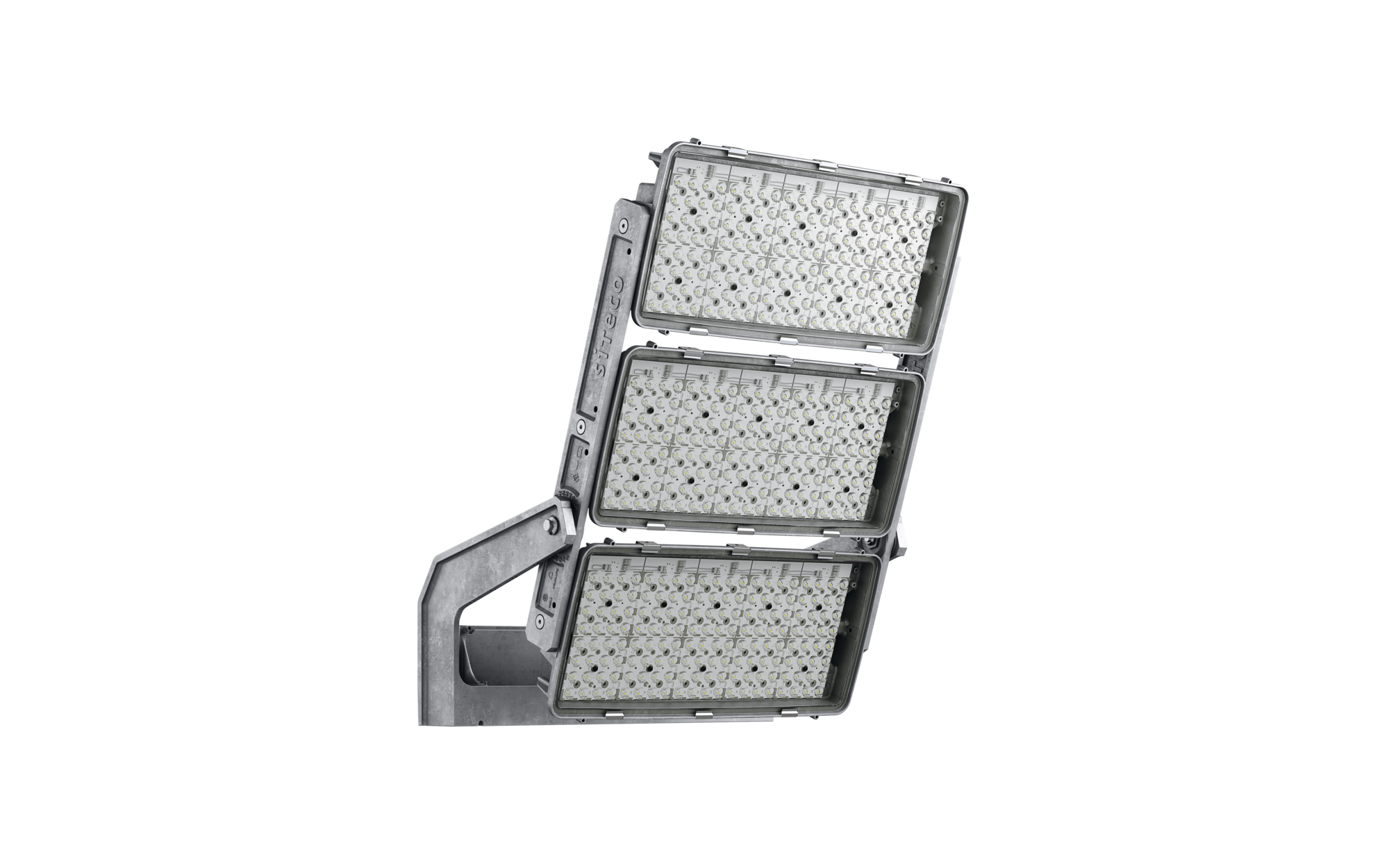

Product name Floodlight FL 11 maxi pro
Lamp LED
Rated luminous flux 191730lm
Luminous efficacy 125lm/W
Colour temperature 5700K
Colour rendering CRI > 80
Rated input power 1540W
Service life 10000h (L96/B10) at AT = 10°C, 75000h (L80/B10) at AT = 10°C
Protection rating IP66
Impact resistance IK07
Weight 29.4kg

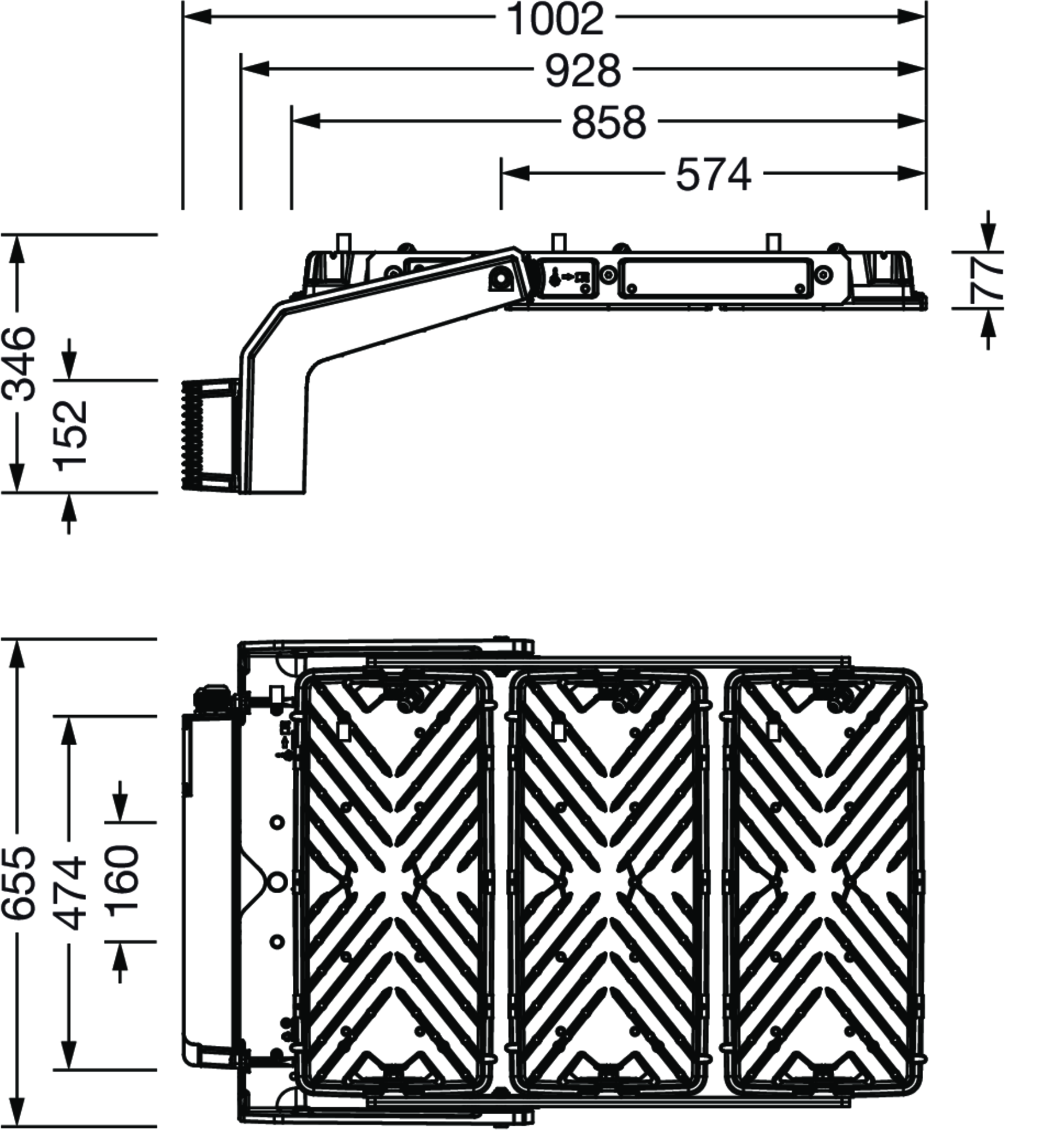

Floodlight FL 11 maxi pro floodlight; light control with lens of PMMA; cover panel of toughened safety glass, transparent; light distribution: PL33T, asymmetric direct distribution, LEDcolour temperature: 5700K, rated luminous flux: 191.730lm, colour rendering: CRI > 80, light colour: 857; luminous efficacy: 125lm/W; brightness control: DALI 2 (1 DALI address); with terminal, 6-pole, max. 2.5mm², mains connection: 220..240V/380..400V AC, 50/60Hz, surge voltage resistance: line to ground: 10kV, ECG replaceable separately, no afterglow with DALI off / DMX off command, LED unit replaceable without ESD environment, dustproof LED module, dimming range 10..100%; 1540W floodlight with 3x LED unit of diecast aluminium, uncoated natural; length: 1.003mm / width: 651mm / height: 338mm; mounting bracket, of diecast aluminium, uncoated, natural, equipment: Power, protection rating (complete): IP66; insulation class (complete): insulation class I (protective earthing); certification: CE; ball protection: ball impact resistant, impact resistance: IK07; only for outdoor installations, rated ambient temperature 10°C, permissible operating ambient temperature: -40..+30°C, permissible storage temperature: -40..+85°C; packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details
Photometric report / planning data
Floodlight FL 11
LED, direct asymmetric distribution, surface-mounted, to supporting structure, to the ceiling, to the cross arm
Lamps: 1x LED
Ordercode: 5XA779128T01AA
