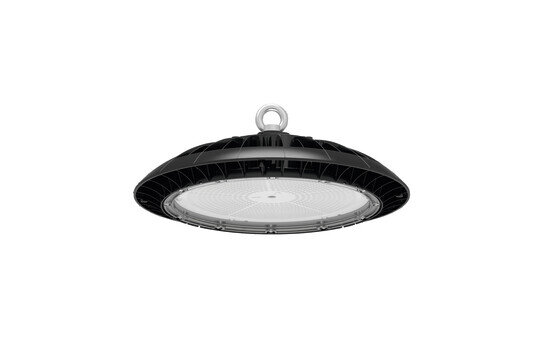

Highbay 42-S, wide distribution, 90°, 840, ON/OFF, AC
CloseArticle LED high bay luminaire
Product name Highbay 42-S
Lamp LED
Rated luminous flux 19200lm
Luminous efficacy 160lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 120W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP65
Impact resistance IK08
Weight 1.8kg

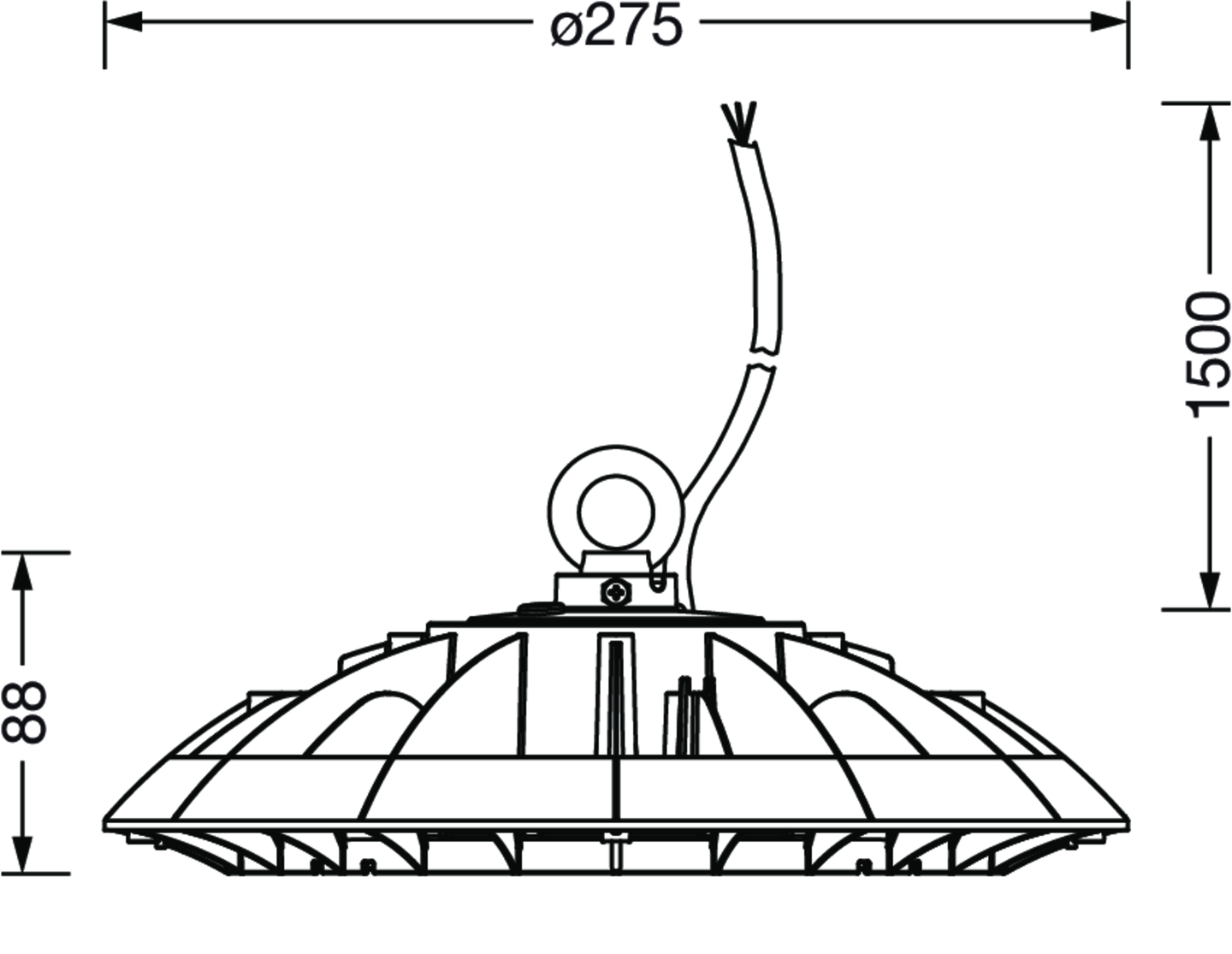

Highbay 42-S, LED high bay luminaire, primary light control with lens, of PC, primary optical cover: cover panel, of PC, transparent, light emission: direct distribution, primary light characteristic: rotationally symmetric, installation type: suspended mounting, surface-mounted, LED, rated luminous flux: 19.200lm, luminous efficacy: 160lm/W, light colour: 840, colour temperature: 4000K, control gear: ECG, with cable, 3x 1.0mm², free wire ends, mains connection: 230V, AC, 50Hz, cable length: 1,5m, rated input power: 120W, housing, rotationally symmetric, of diecast aluminium, black, with hook on luminaire side, diameter: 275mm, height: 117mm, protection rating (complete): IP65, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -20..+40°C, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
- Tender text (TXT)
- Revit (RFA)
- 3D-Model (3DS)
- 3D-Model (3DS)
- 3D-Model (3DS)
- 3D-Model (DXF)
- 3D-Model (DXF)
- 3D-Model (DXF)
![](/asset/emea_en/%2A/PNG500A/1000280/51HP327A4HMA.png)
![](/asset/emea_en/%2A/PNG500A/1000265/51HP327A4HMA.png)
![](/asset/emea_en/%2A/PNG500A/1000176/51HP327A4HMA.png)
![](/asset/emea_en/%2A/PNG500A/1000164/51HP327A4HMA.png)
![](/asset/emea_en/%2A/PNG500A/1000149/51HP327A4HMA.png)
![](/asset/emea_en/%2A/PNG500A/1000166/51HP327A4HMA.png)
![](/asset/emea_en/%2A/PNG500A/1000177/51HP327A4HMA.png)
Product details
Photometric report / planning data
![](/asset/emea_en/%2A/LIDPIC/1112554/51HP327A4HMA_1xLED_59149_3.jpg)
HB42S
rot.sym,wd,90°,19200lm840,0/1
Lamps: 1x LED
Ordercode: 51HP327A4HMA
![](/asset/emea_en/%2A/LIDPIC/1112555/51HP327A4HMA-59HP91001_1xLED_59150_3.jpg)
HB42S
Lamps: 1x LED
Ordercode: 51HP327A4HMA
reflector
Ordercode: 59HP91001
![](/asset/emea_en/%2A/LIDPIC/1112556/51HP327A4HMA-59HP91003_1xLED_59151_3.jpg)
HB42S
Lamps: 1x LED
Ordercode: 51HP327A4HMA
reflector
Ordercode: 59HP91003
