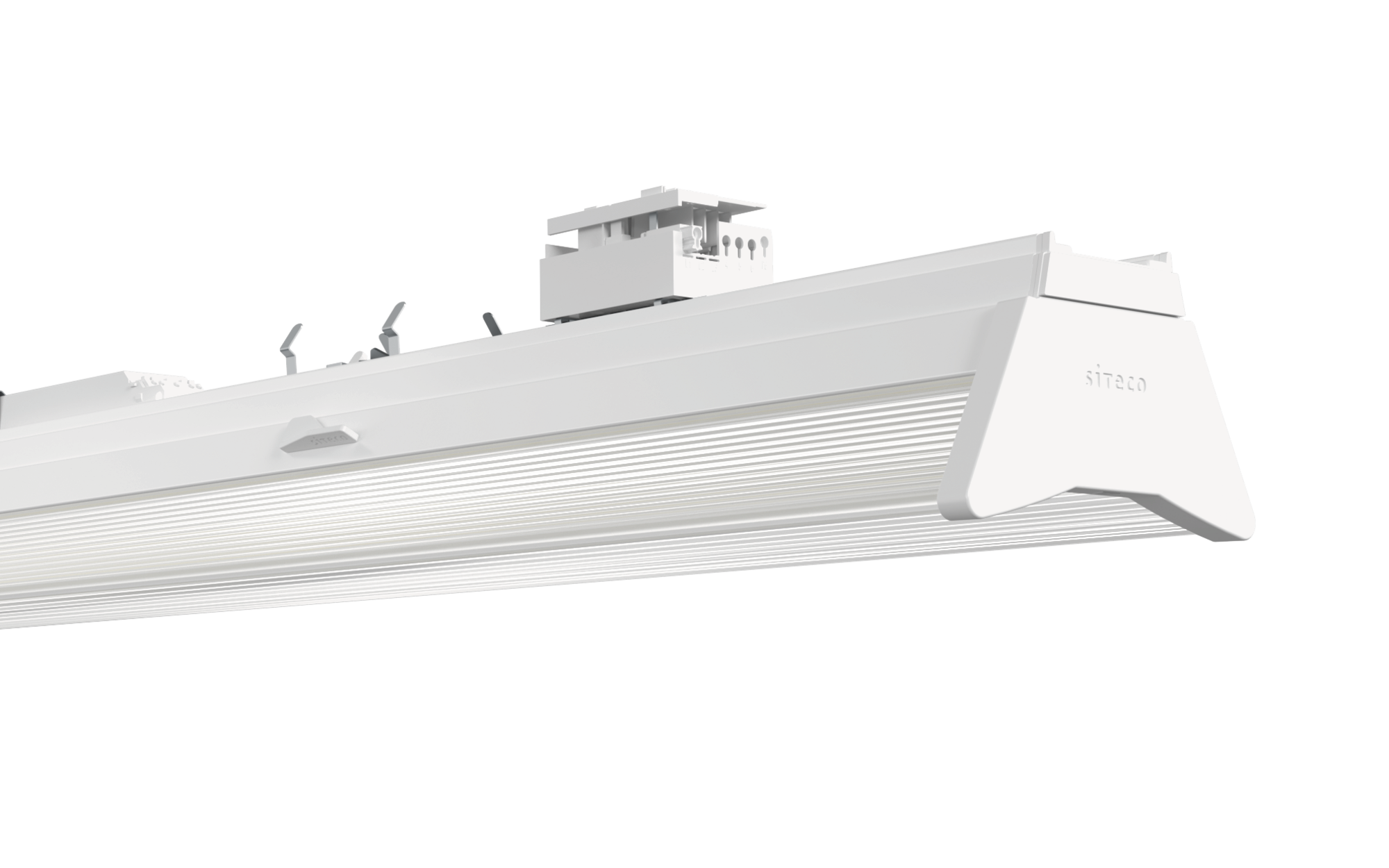

Licross® 21 Performance MO, with lever catch, symmetric wide distribution, AC
CloseArticle luminaire insert
Product name Licross® 21 Performance MO
Lamp LED
Rated luminous flux 5970lm
Luminous efficacy 182lm/W
Colour temperature 6500K
Colour rendering CRI > 80
Pnom begin service life 33
Pnom end service life 39
Service life 75000h (L100/B50) at AT = 25°C
Protection rating IP54
Impact resistance IK06
Weight 3.1kg

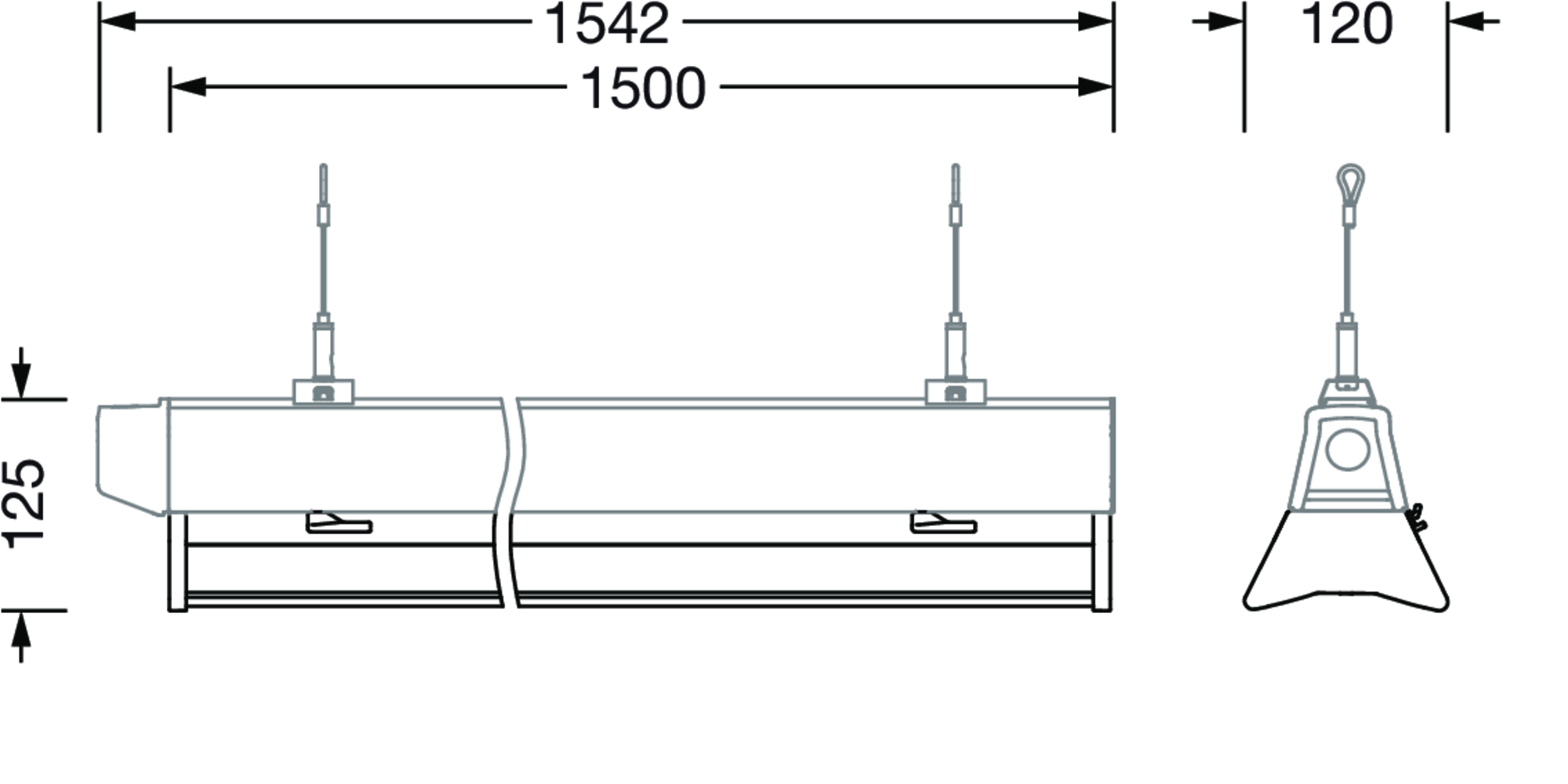

Licross® 21 Performance MO, luminaire insert, of sheet steel, galvanised, coil coated, white, length: 1.500mm, width: 120mm, height: 123mm, LED rated luminous flux: 5.970lm, light colour: 865, control gear: ON/OFF Multilumen, CLOi, with plug, 3-pole, with phase selection, mains connection: 220..240V, AC, 50/60Hz, start of lifetime: 33W, end of service life: 39W, halogen-free wiring, primary light control with lens, of plastic, primary optical cover: cover, of PMMA, light emission: direct/indirect distribution, primary light characteristic: symmetric, protection rating (complete): IP54, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, UKCA, protection symbol: D if used in an environment with non-conductive dust loads with corresponding accessories, impact resistance: IK06, permissible ambient temperature for indoor applications: -35..+55°C, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details

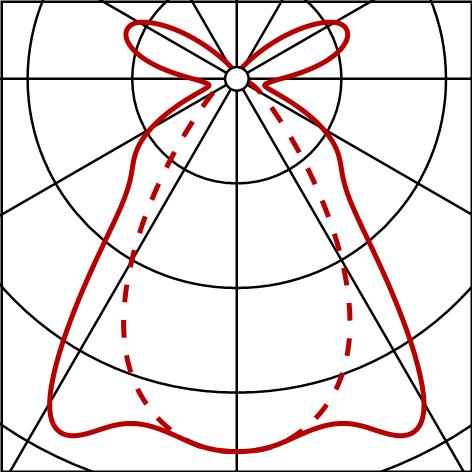

Photometric report / planning data
Lic21Pe
wd,5970lm865,MLCi,IP54,L1500,wh
Ordercode: 52TD16CN66XG
