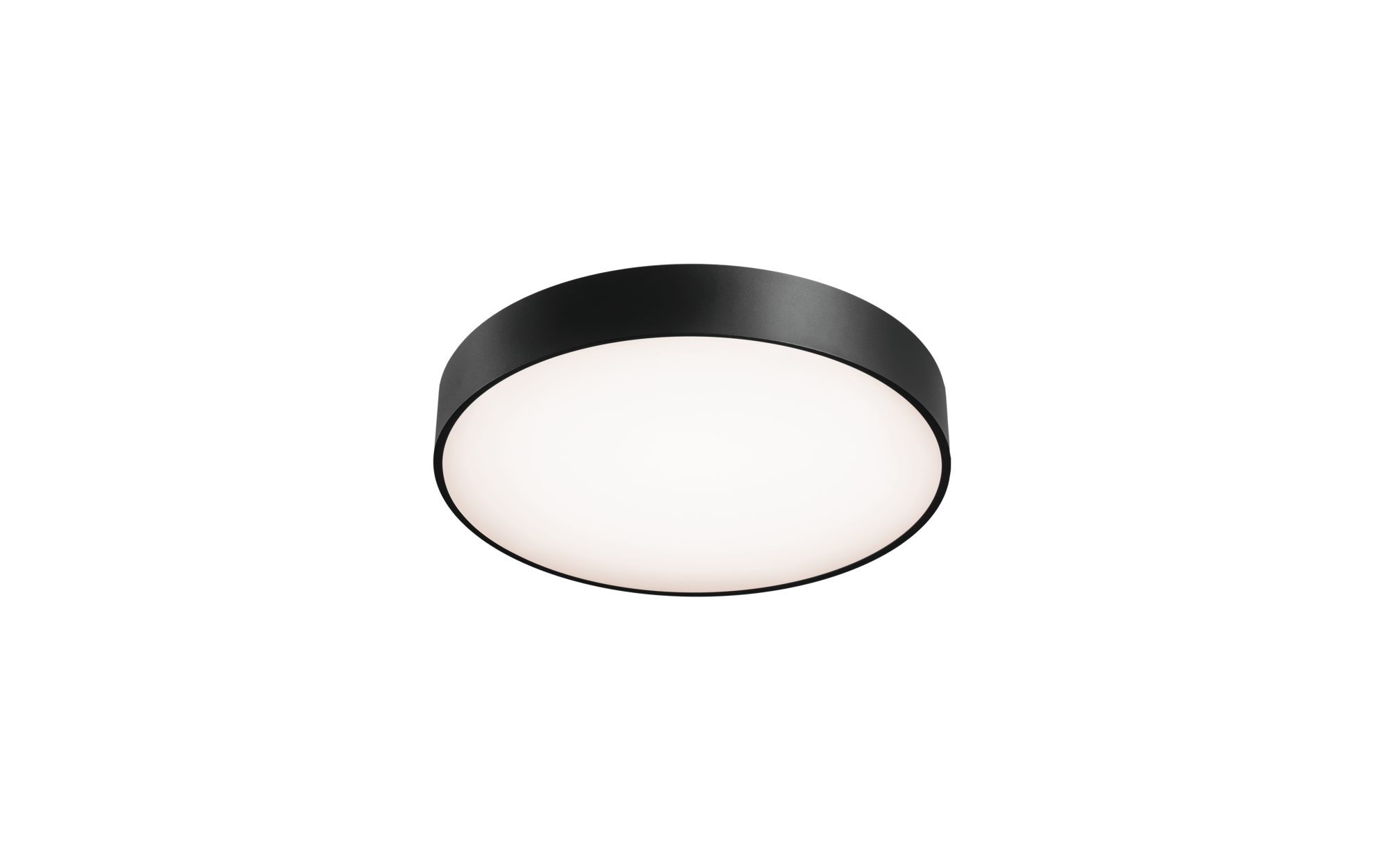

Round 21 S, opal, direct distribution, 105°, Light colour 840, DALI 2, black
CloseArticle wall and ceiling luminaire
Product name Round 21 S
Lamp LED
Rated luminous flux 3580lm
Luminous efficacy 118lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 30W
Protection rating IP40
Impact resistance IK04
Weight 3.1kg

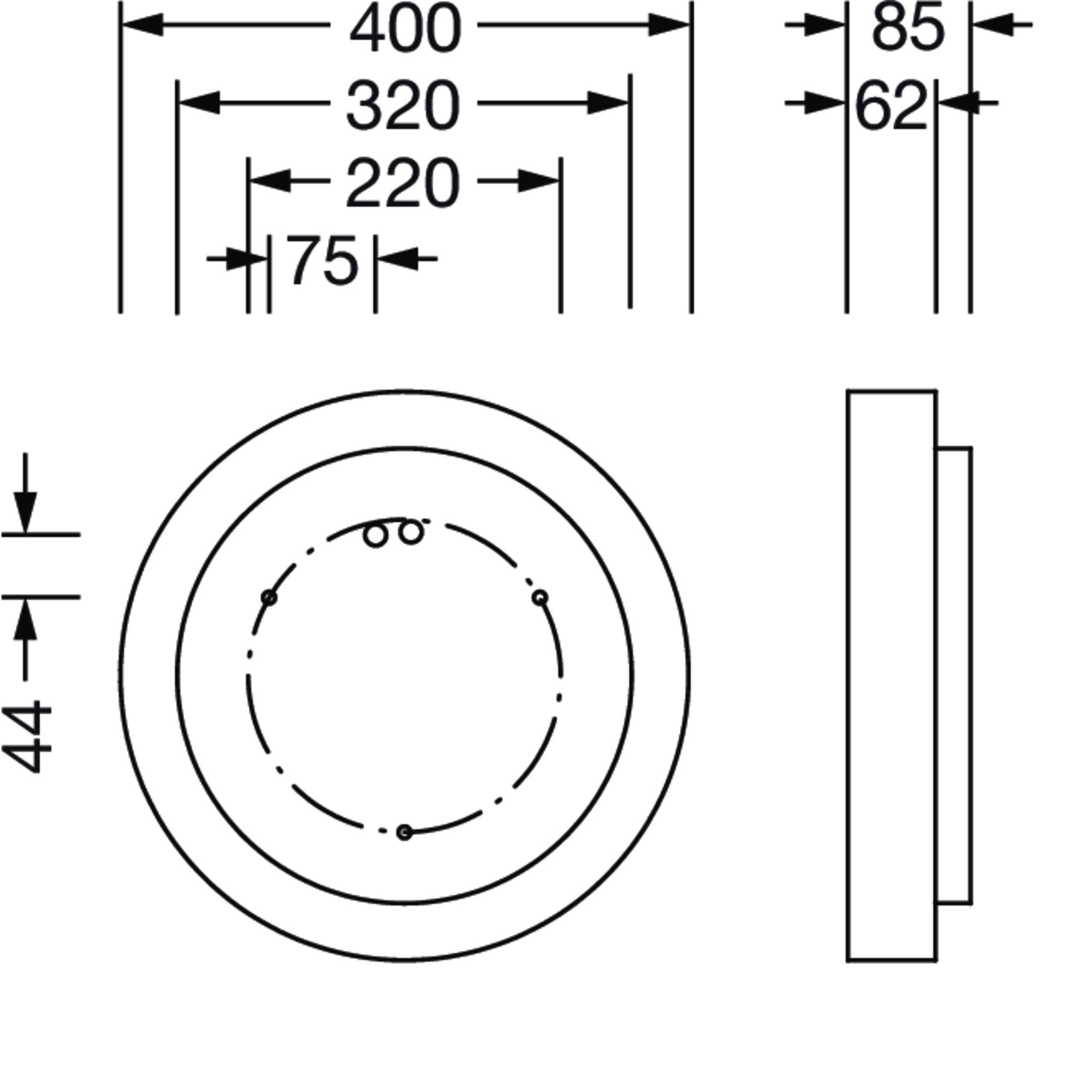

Round 21 S, wall and ceiling luminaire, primary optical cover: cover, of PMMA, opal, light emission: direct distribution, primary light characteristic: symmetric, installation type: suspended mounting, surface-mounted, LED, rated luminous flux: 3.580lm, luminous efficacy: 118lm/W, light colour: 840, colour temperature: 4000K, with terminal, 5-pole, mains connection: 230V, AC, 50/60Hz, rated input power: 30W, housing, of aluminium, coated, black, diameter: 400mm, height: 62mm, protection rating (complete): IP40, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK04, permissible operating ambient temperature: -10..+35°C, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
![](/asset/emea_en/%2A/PNG500A/1000285/51MR34FD0421B.png)
![](/asset/emea_en/%2A/PNG500A/1000249/51MR34FD0421B.png)
![](/asset/emea_en/%2A/PNG500A/1000155/51MR34FD0421B.png)
![](/asset/emea_en/%2A/PNG500A/1000166/51MR34FD0421B.png)
![](/asset/emea_en/%2A/PNG500A/1000177/51MR34FD0421B.png)
Product details
![](/asset/emea_en/%2A/LIDPIC/1335942/51MR34FD0421B_1xLED_59509_20.jpg)
Photometric report / planning data
Round21S
opal,dir,3580lm840,DA2,bk
Ordercode: 51MR34FD0421B
