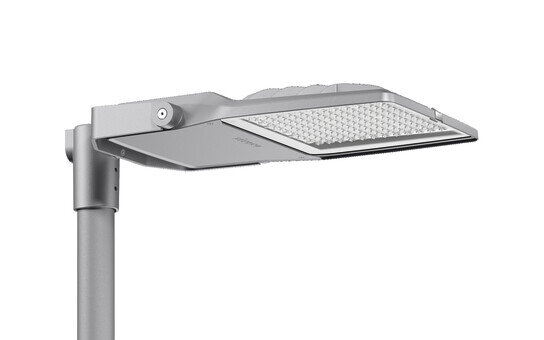

Floodlight FL 21 iQ midi, PL64, direct distribution
CloseArticle floodlight
Product name Floodlight FL 21 iQ midi
Lamp LED
Rated luminous flux 34530lm
Luminous efficacy 128lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom begin service life 270
Pnom end service life 287
Pred at 50% lumin. flux 117
Service life 100000h (L94/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 10.2kg
Floodlight FL 21 iQ midi, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: PL64, light emission: direct distribution, installation type: surface-mounted, LED, High Power LED, rated luminous flux: 34.530lm, luminous efficacy: 128lm/W, light colour: 730, colour temperature: 3000K, control gear: ECG iQ, control: optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Smart-Wire, Night-Set, Temp-Guard, Auto-Match, Street-Remote, with terminal, 6-pole, mains connection: 220..240V, AC, 50/60Hz, start of lifetime: 270W, end of service life: 287W, reduction: 117W, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), corrosivity category C5 mid according to DIN EN ISO 12944, sealing non-destructively replaceable, please order mast flange separately, mast bracket, of steel, galvanised, powder-coated, Siteco® metallic grey (DB 702S), protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
![](/asset/emea_en/%2A/PNG500A/1000244/5XA7782F2E3A.png)
![](/asset/emea_en/%2A/PNG500A/1000145/5XA7782F2E3A.png)
![](/asset/emea_en/%2A/PNG500A/1000175/5XA7782F2E3A.png)
![](/asset/emea_en/%2A/PNG500A/1000176/5XA7782F2E3A.png)
![](/asset/emea_en/%2A/PNG500A/1000173/5XA7782F2E3A.png)
![](/asset/emea_en/%2A/PNG500A/1000149/5XA7782F2E3A.png)
![](/asset/emea_en/%2A/PNG500A/1000165/5XA7782F2E3A.png)
![](/asset/emea_en/%2A/PNG500A/1000177/5XA7782F2E3A.png)

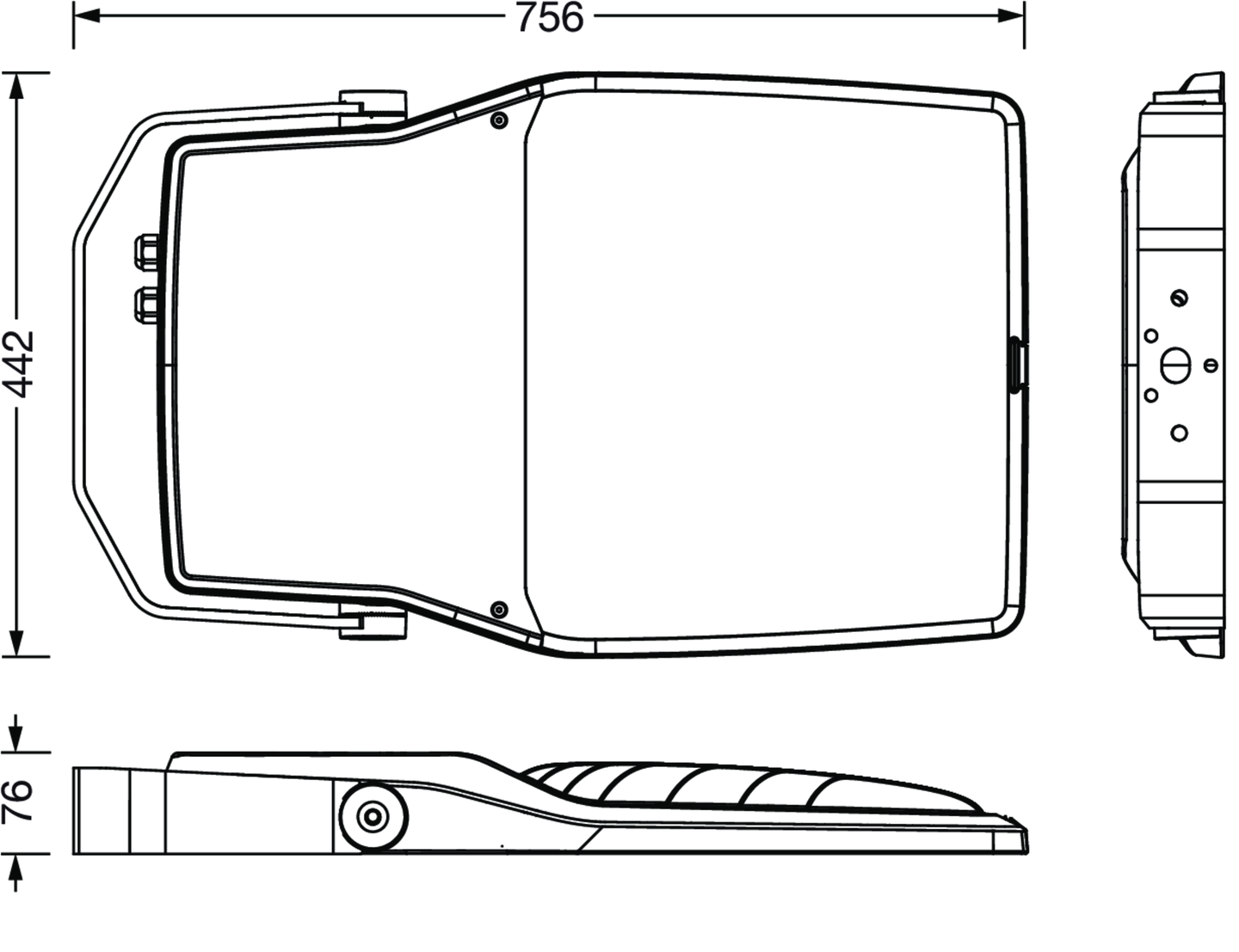

Product details

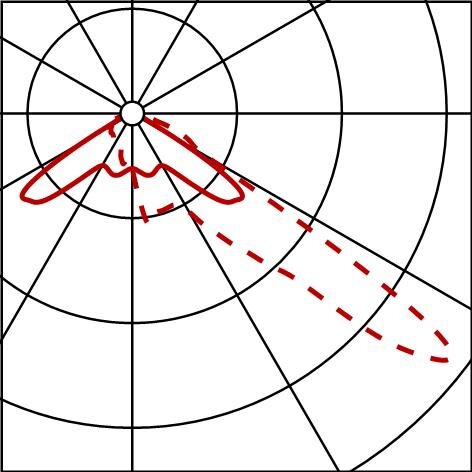

Photometric report / planning data
![](/asset/emea_en/%2A/LIDPIC/1255825/5XA7782F2E3A_1xLED_59252_201.jpg)
Floodlight FL 21 iQ midi
LED, ECG iQ, direct distribution, surface-mounted, to mast
Lamps: 1x LED
Ordercode: 5XA7782F2E3A
