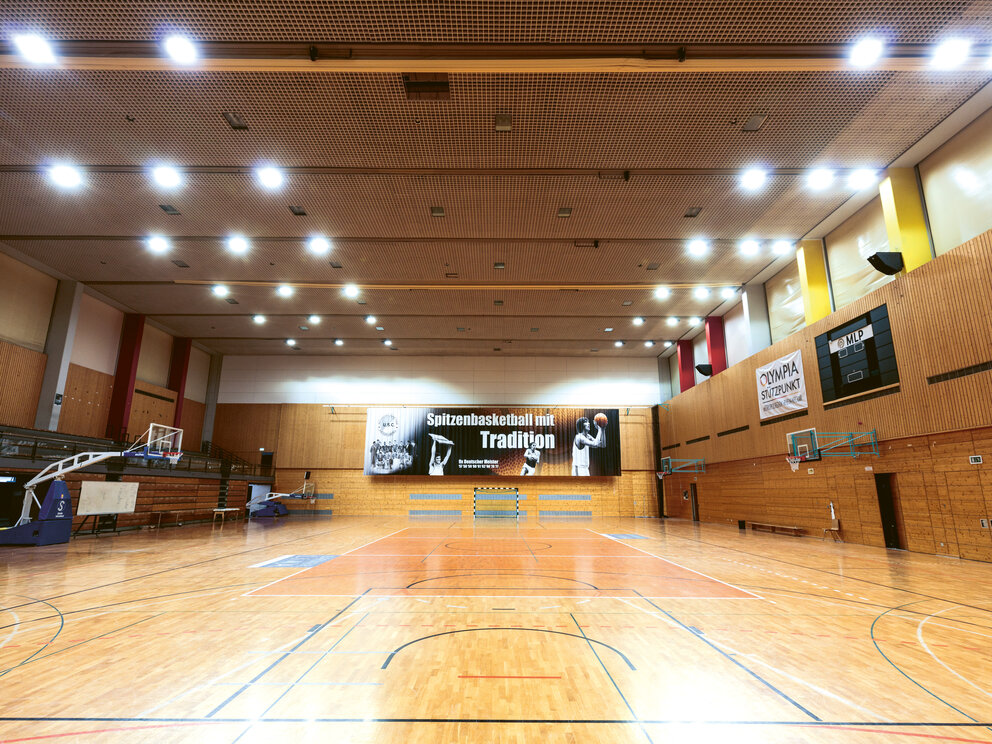

Sports halls
School sports today, badminton tournament tomorrow.
Sports halls have many different uses, making good, adaptable lighting all the more important to meet the needs of all users.
Planning example with Sport 31
Room details
Playing field: 25.0 x 12.42 m (310.5 m²)
Mounting height: 5.6 m
Normative requirements
Order list for planning example
| Quantity | Description | Order no. |

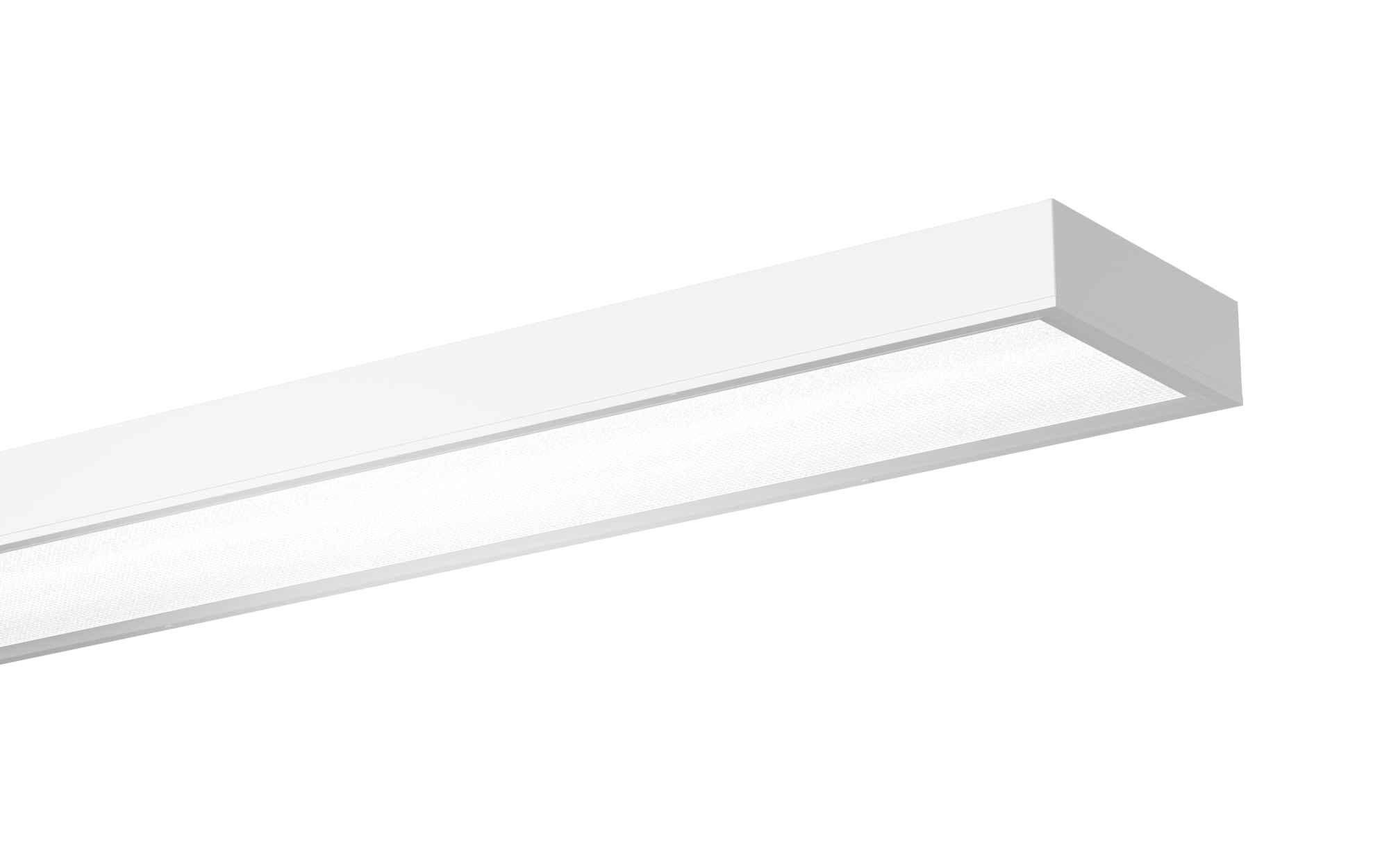

| 21 | Sport 31, direct wide symmetrical distribution, 8,000 lm, light colour 840, DALI2, white | 51HS12DC4DCA |
| 6 | Sport 31, direct wide symmetrical distribution, 12,000 lm, light colour 840, DALI2, white | 51HS12DC4ECA |
| 3 | SITECO Connect External Sensor Interface S, Slave | 59US1FCSA |
| 3 | SITECO Connect Sensor-Head PC5-S, Slave | 59US1HXSPC5A |
| 3 | Sensor-Head wire grid for ball protection | 5LZ925BSK |
| 1 | DALI2 push button interface, slave (for connection to a DALI-2 system) | 5LZ904731A |
Additional planning information
Pay attention to these aspects:
- Ball-proof luminaires protect athletes and lighting from damage.
- Flexible lighting control adapts the light level to the type of sport and use; areas can be switched separately.
- Flat lights prevent glare during overhead sports.
- Neutral white light (4,000 K) with good color rendering ensures optimum visibility.
- Uniform illumination eliminates dark zones.
