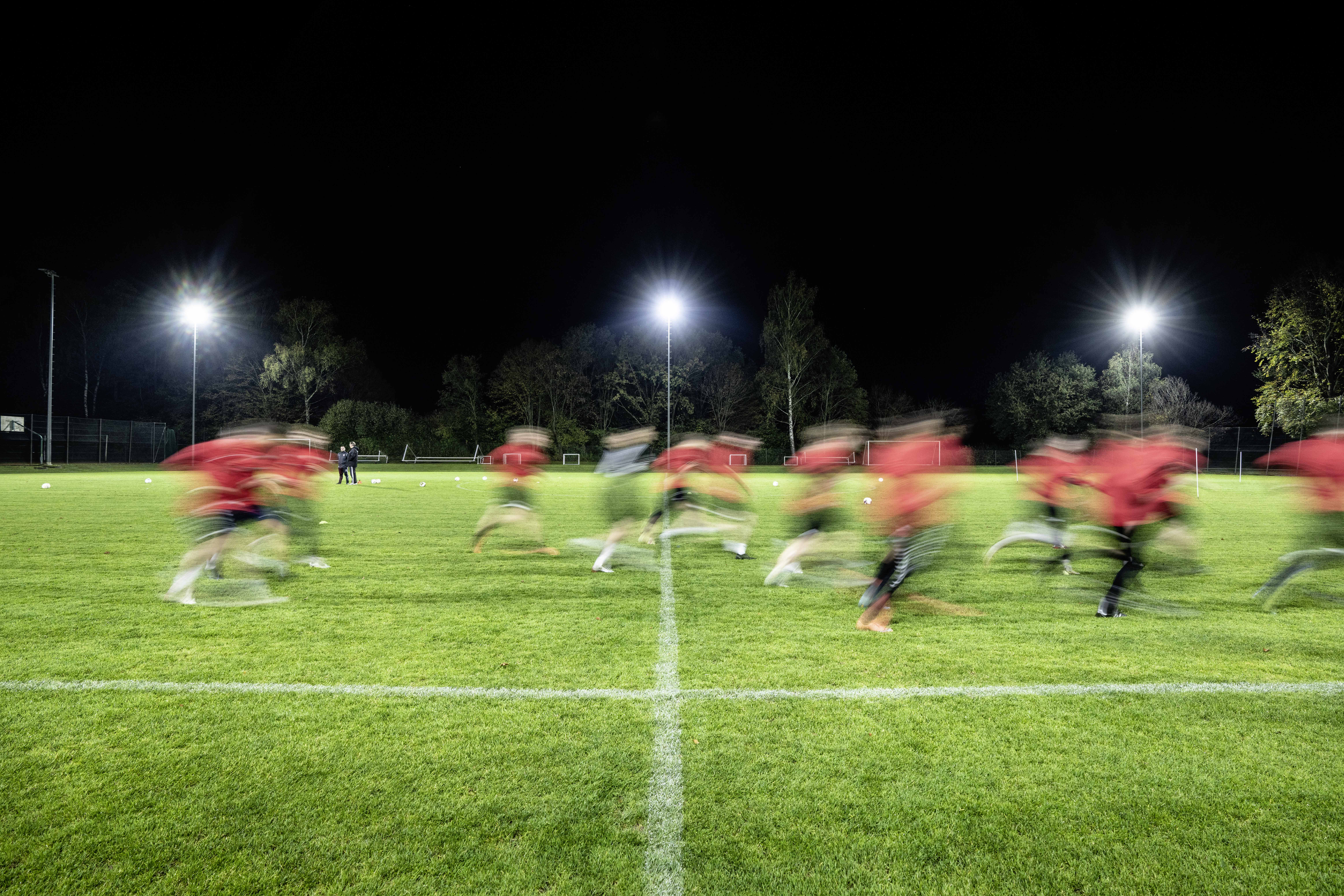

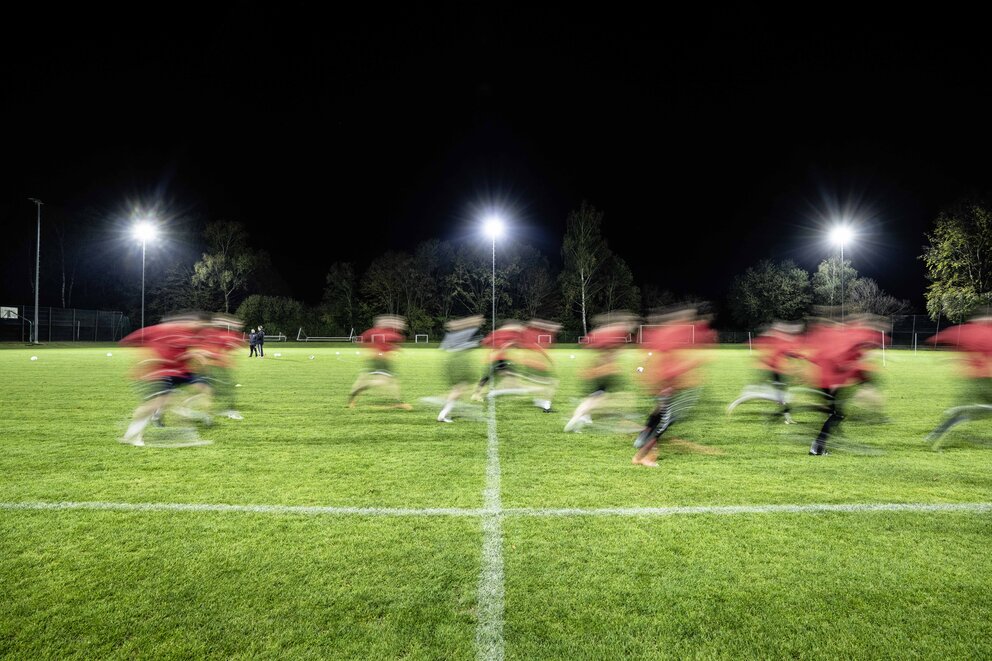

Sports fields
School sports today, badminton tournament tomorrow.
Whether football, athletics or field hockey: athletes and spectators, as well as local residents, demand optimal visibility without glare.

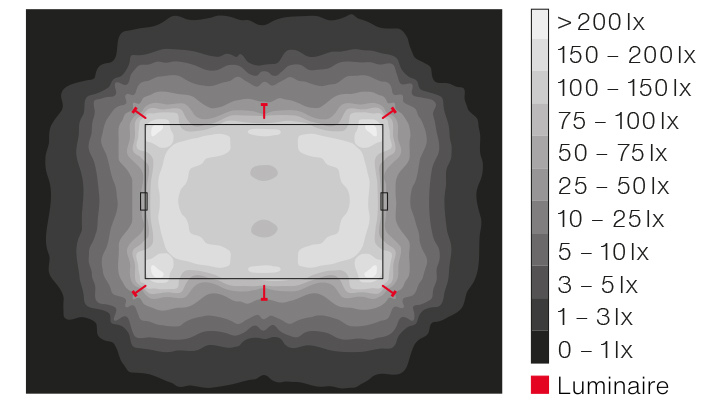

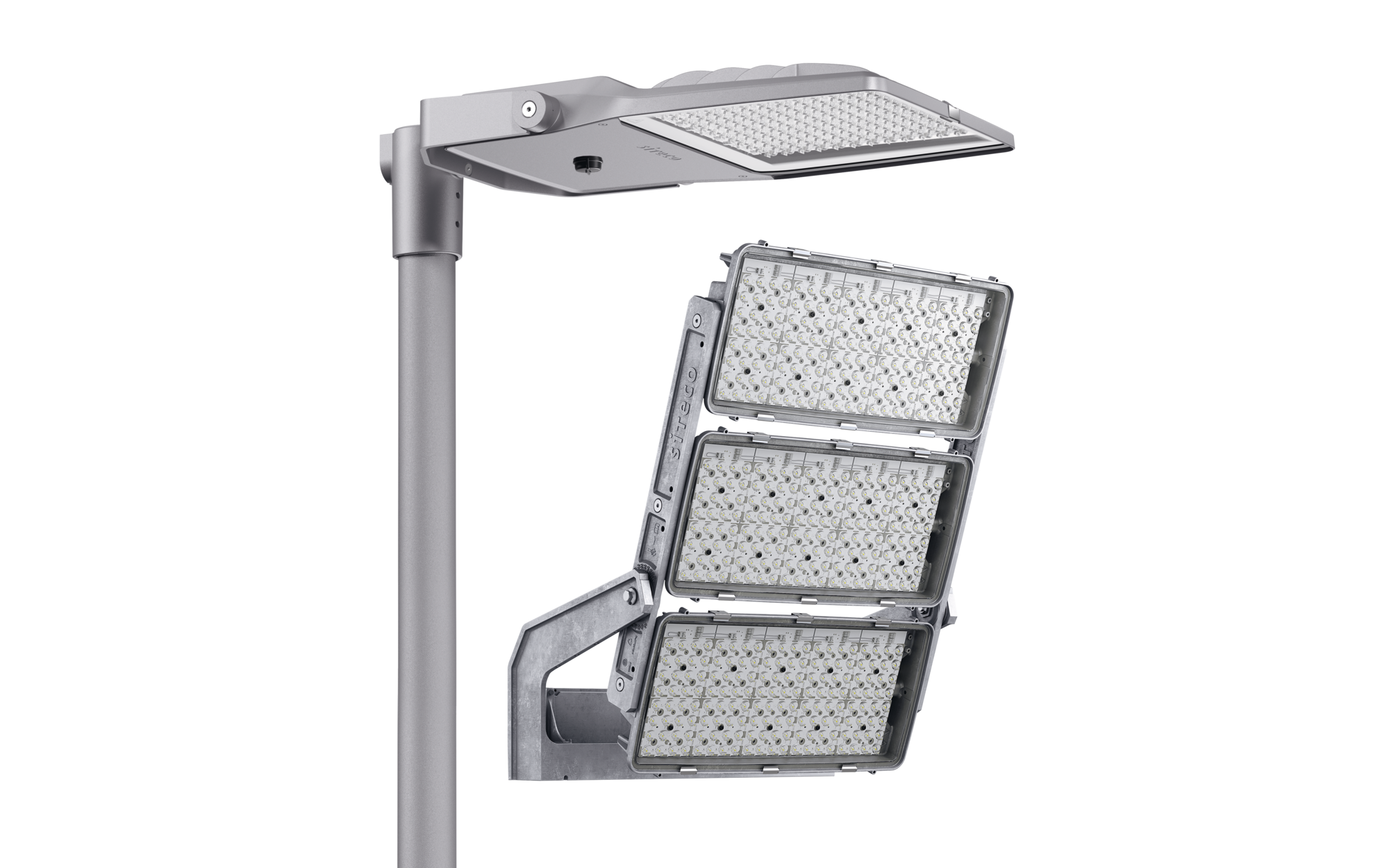

Planning example with Floodlight FL 11
Sports field details
Area: 105 × 68 m (7,140 m²)
Mounting height: 16 m
6-mast system
Distance between masts: X = 52.5 m / Y = 74.0 m

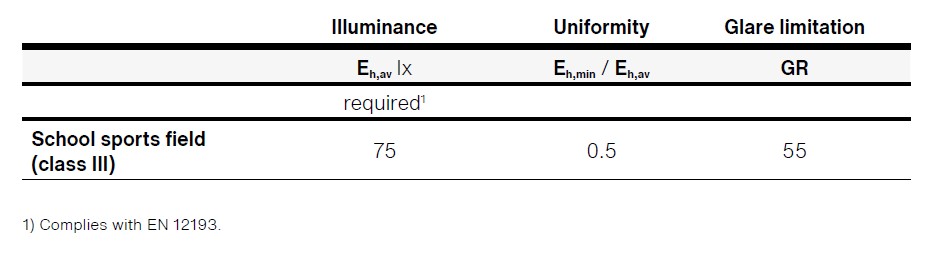

Normative requirements
Order list for planning example
| Quantity | Description | Order no. |
| 4 | Floodlight FL 11 maxi pro, floodlight, PL33T, asymmetric distribution | 5XA779125T01AB |
| 2 | Floodlight FL 11 maxi pro, floodlight, PL64, asymmetric distribution | 5XA779125V01AB |
| 6 | Cable junction box, for 3 cables up to 5x 16mm², with surge protection 2x E14 | 5NY70062DK |
Additional planning information
Pay attention to these aspects:
- At least 75 lx for simple competitions, training, school or leisure sports.
- 200 lx for intermediate competition & performance training.
- 500 lx for high-performance competitions and training.
- Use luminaires with good glare control.
- High-mounted luminaires prevent glare when the ball is in play.
