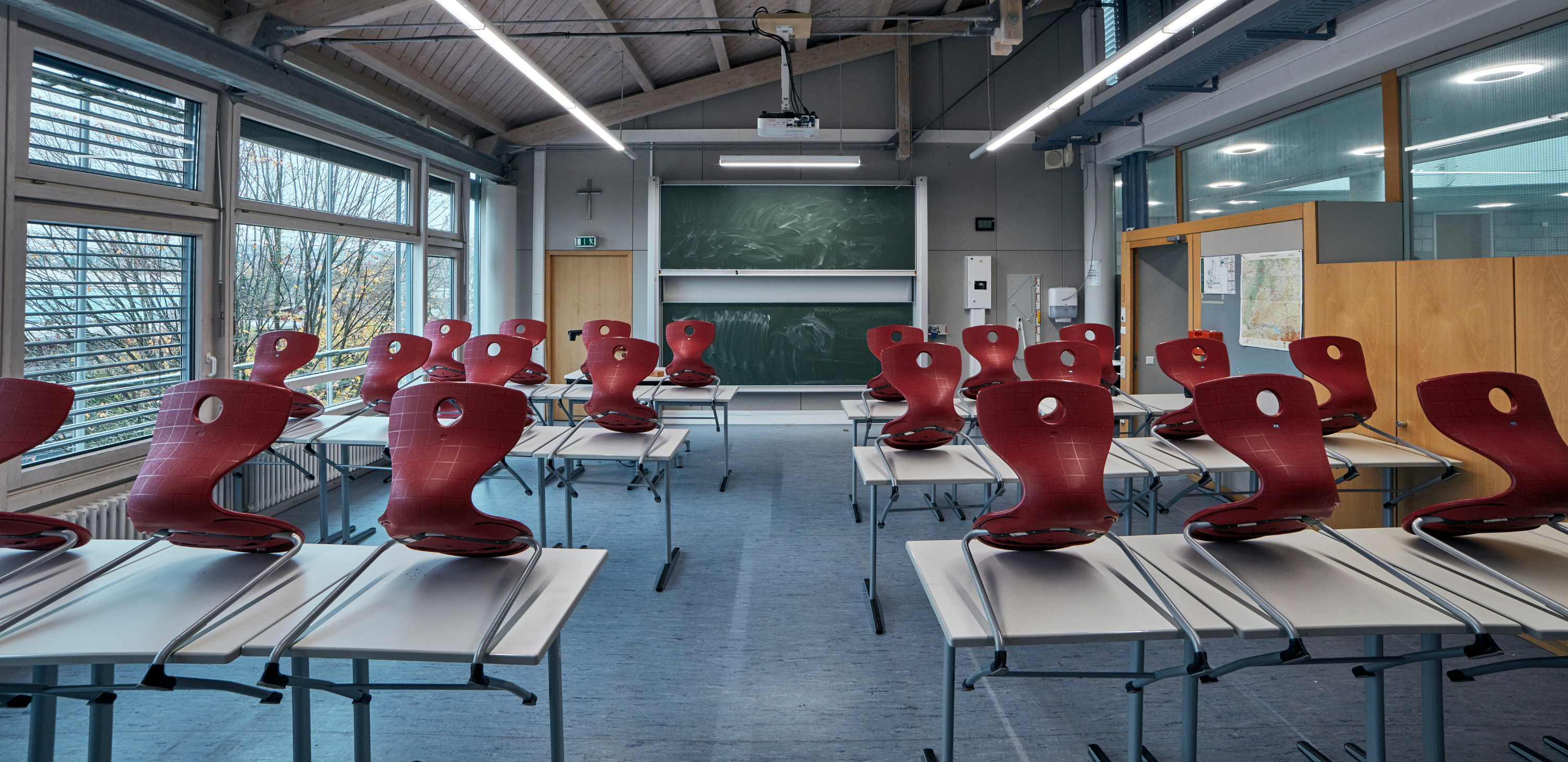

Classrooms
Full concentration without fatigue.
Good light promotes focused studying and supports the biorhythm.

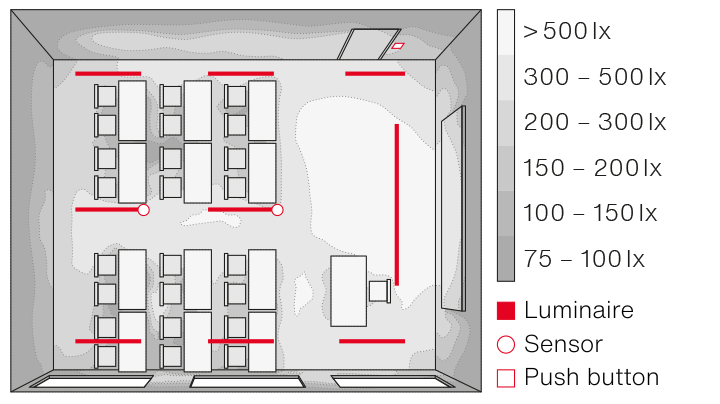

Planning example with Silica 21
Room details
Room area: 8.8 × 7.2 m (63.4 m²)
Mounting height: 3 m

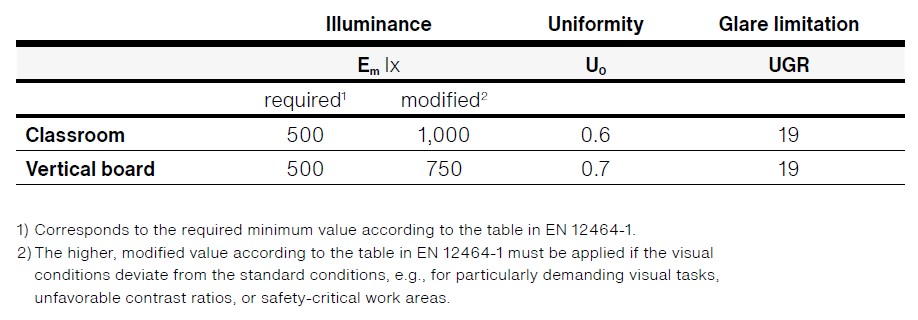

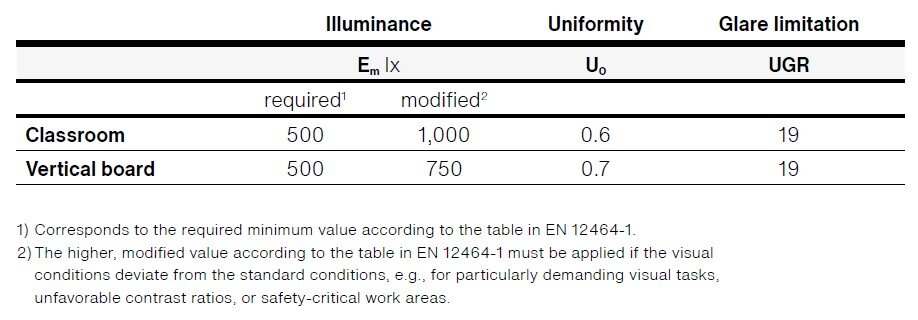

Normative requirements
Order list for planning example
| Quantity | Description | Order no. |
| 8 | Silica® 21, wide distribution, ELDACON® L, darklight reflector, white, Light colour 840, UGR ≤ 19, DALI 2, traffic white (RAL 9016) | 51MX26DA44WB |
| 2 | Silica® 21, wallwasher, ELDACON® L, darklight reflector, white, Light colour 840, UGR ≤ 19, DALI 2, traffic white (RAL 9016) | 51MX27DB45WB |
| 9 | Wire suspension with ceiling canopy, with ceiling canopy, white, round, with connection cable | 59MX30DJ20W |
| 1 | Wire suspension with ceiling sleeve, with ceiling sleeve | 59MX300020X |
| 1 | Connector | 59MX700V40X |
| 1 | Through-wiring, L= 1,5m | 59MX70DL20X |
| 2 | Silica® 21, sensor module PC3-S, traffic white (RAL 9016) | 59MX2CD000WA |
| 3 | DALI2push button interface, slave (for connection to a DALI-2 system) | 5LZ904731A |
Additional planning information
Pay attention to these aspects:
- Direct and indirect light for uniform illumination and as a basis for biological light (HCLlive).
- Uniformly good lighting conditions allow flexible use of the space.
- Adjustable light colors (2,700 K – 6,500 K) adapt to the course of daylight.
- Board lighting: Uniform, separately switchable and dimmable.
